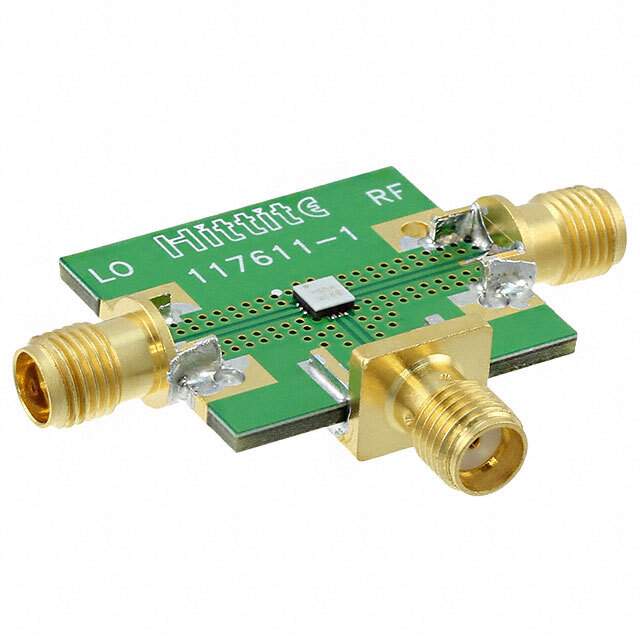

The HMC554LC3B is a high-performance, GaAs MMIC Double-Balanced Mixer from Analog Devices Inc., designed to meet the demanding requirements of RF and microwave signal processing in various applications. This product is part of the Hittite Microwave Corporation product line acquired by Analog Devices, known for their high-quality and reliable components.

Key Features

• Frequency Range: The HMC554LC3B operates over a broad frequency range, supporting IF frequencies from DC to 7 GHz, LO frequencies from 6 to 16 GHz, and RF frequencies from 6 to 14 GHz, making it versatile for a wide array of RF applications.
• Conversion Loss: This mixer boasts an excellent conversion loss of 8 dB typical, ensuring efficient signal conversion and minimal loss of signal strength during the mixing process.
• LO/RF Isolation: It offers outstanding LO/RF isolation of 25 dB typical, which minimizes leakage between the local oscillator and the RF signal, resulting in cleaner signal processing.
• IP3 Performance: The HMC554LC3B provides high third-order intercept performance (IP3) of 18 dBm typical, which indicates its ability to maintain linearity and handle high power without significant distortion.

Applications

This mixer is ideal for use in:

• Point-to-Point and Point-to-Multipoint Radios
• Military and Space
• Test Equipment and Sensors
• Telecommunication Infrastructure

Product Specifications

Quality and Reliability

Analog Devices Inc. is committed to providing the highest quality and reliability in its products. The HMC554LC3B is RoHS compliant, ensuring adherence to the latest environmental standards and regulations. With a reputation for excellence in engineering and manufacturing, Analog Devices ensures that this mixer will meet the rigorous demands of high-stakes environments and applications.
