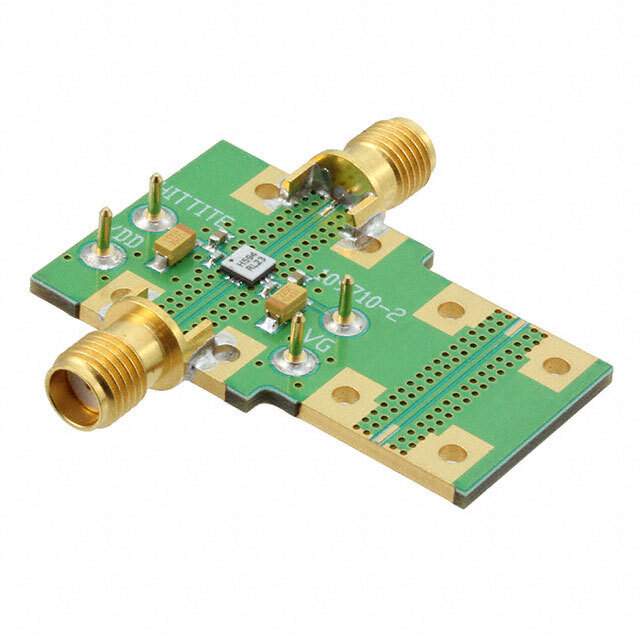

The HMC594LC3B, a high-quality product from Analog Devices Inc., is a GaAs PHEMT MMIC (Monolithic Microwave Integrated Circuit) Power Amplifier that operates in the frequency range of 17 to 24 GHz. This amplifier is designed to deliver exceptional performance for a variety of applications, including point-to-point radios, military and space, and fiber-optic applications.

Key Features

• Frequency Range: Specifically engineered for the 17 to 24 GHz band, making it ideal for K-band operations.
• Output Power: Delivers a high output power of +29 dBm (typical) at 1 dB compression point, providing robust signal amplification.
• Gain: Offers a substantial gain of 15 dB (typical), ensuring signal strength is maintained or enhanced through the transmission path.
• Power Added Efficiency (PAE): Exhibits a power-added efficiency of 20% (typical), optimizing power consumption for system efficiency.
• Package: Housed in a compact 3x3 mm SMT package, the HMC594LC3B is suitable for space-constrained applications.
• Supply Voltage: Operates on a supply voltage of +5V, compatible with standard system voltages.

Applications

The versatility of the HMC594LC3B makes it an excellent choice for a wide range of applications. Its high-frequency operation is perfect for satellite communications, where reliable and efficient signal amplification is critical. Additionally, its performance characteristics make it suitable for use in radar systems, where precision and power are essential. The amplifier's robust design also allows for its use in test instrumentation, providing the necessary gain and power for accurate measurements.

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the HMC594LC3B is no exception. With its robust construction and tested performance, this amplifier is built to meet the demanding requirements of high-frequency communication systems.
