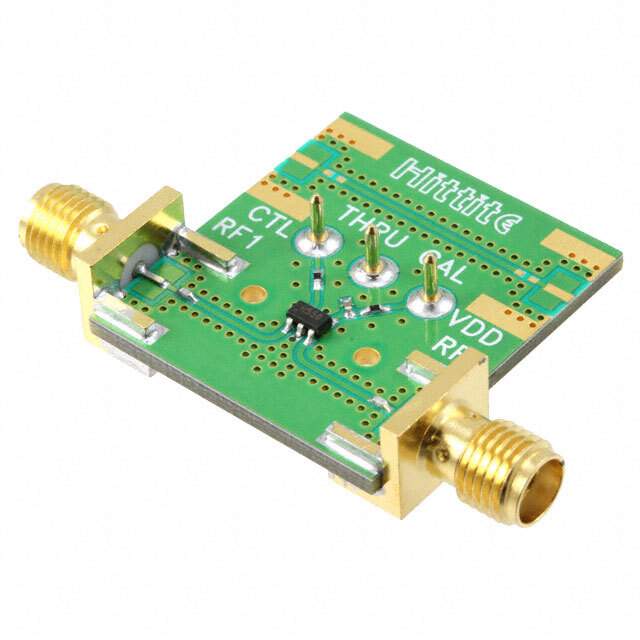

The 109266-HMC550 is a state-of-the-art GaAs MMIC SPDT (Single Pole Double Throw) switch from the renowned manufacturer, Analog Devices Inc. This high-performance switch is designed for use in a variety of RF and microwave applications, offering exceptional switching capabilities across a wide frequency range.

Key Features

• Frequency Range: The HMC550 operates effectively across a broad frequency range, making it versatile for multiple applications, including but not limited to, test equipment, telecommunications, and military systems.
• Insertion Loss: With minimal insertion loss, this switch maintains signal integrity and ensures high-quality transmission, which is crucial for maintaining system performance.
• Isolation: It provides excellent isolation between ports, a critical parameter for systems where leakage between signal paths must be minimized.
• Input Power: The device can handle high input power levels, making it suitable for applications that require robust performance under demanding conditions.
• Control Voltage: The switch operates with a single positive control voltage, simplifying the power supply design and reducing the overall system complexity.
• Package: Housed in a compact package, the HMC550 is designed for easy integration into a wide array of systems without significantly impacting the overall footprint.

Applications

The versatility of the 109266-HMC550 allows it to be used in diverse applications, ranging from RF and microwave signal routing in commercial communication systems to more specialized roles in satellite communications and phased array radars. Its robust design also makes it an ideal choice for integration into test and measurement equipment where reliability and accuracy are paramount.

About Analog Devices Inc.

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits that help solve the toughest engineering challenges. Known for their innovation and high-quality products, ADI's components are integral in the electronics that bridge the physical and digital worlds.

For detailed specifications and application support, visit the Analog Devices Inc. website or contact their technical support team for assistance with the HMC550 switch integration.
