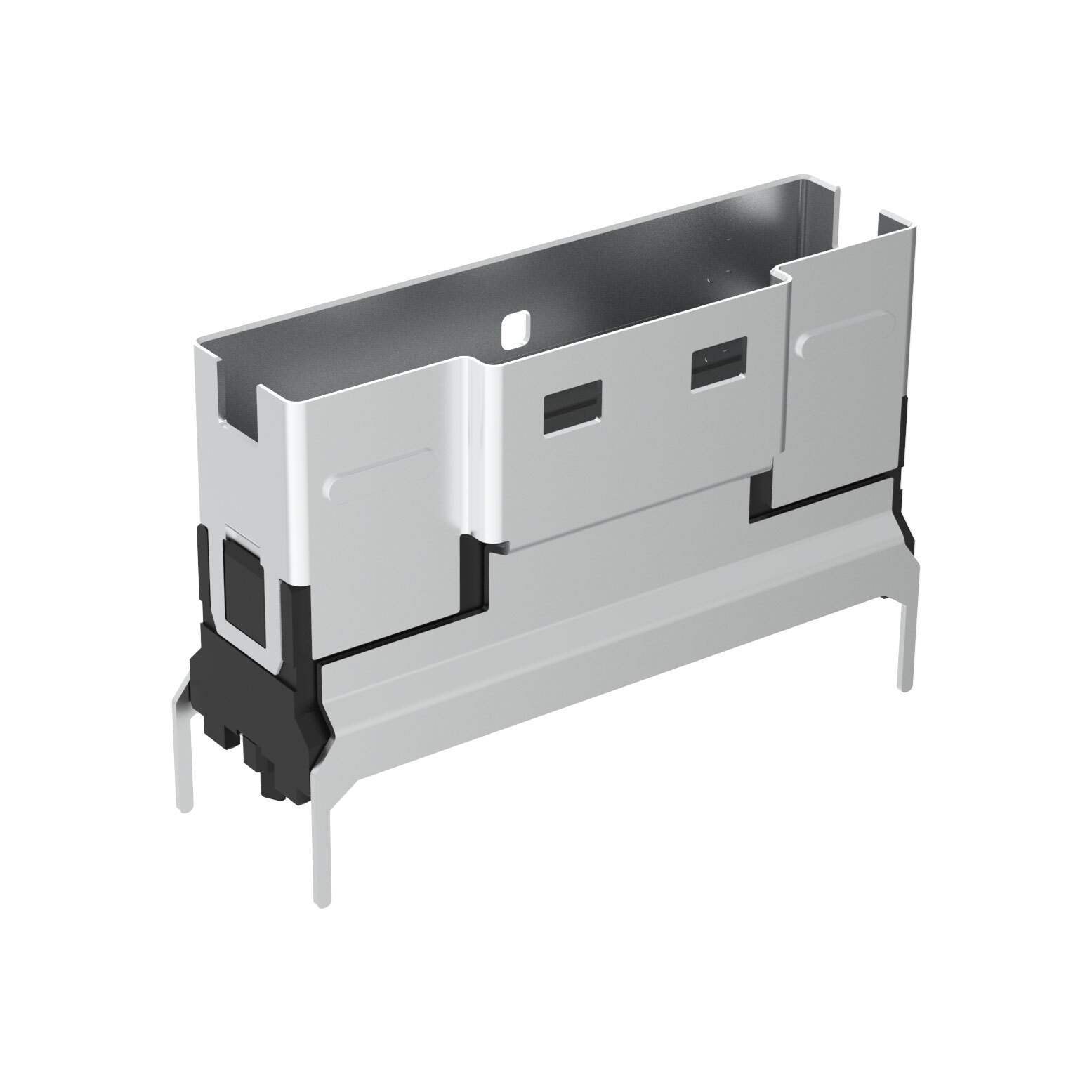

U10BH7425101T Amphenol ICC
Same model may have multiple batches, images only for reference.

U10BH7425101T

Part No U10BH7425101T
Manufacturer Amphenol
Catalog Pluggable Connectors
Description SLIMSAS VT X8 30U AU OUT 3.0 24G
Datasheet
U10BH7425101T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1306823-U10BH7425101T
Manufacturer Amphenol ICC
Category Connectors, Interconnects- Pluggable Connectors- Pluggable Connector Assemblies
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Connector Style Receptacle
Connector Type SAS, 8x
Number of Positions 74
Mounting Type Surface Mount
Termination Solder
Features Board Guide, Latches
Ultra Librarian 3D Model Ultra Librarian U10BH7425101T CAD Model

Description

SlimSAS™ connectors address issues in next-generation storage devices such as bulk cable form factor restrictions and the introduction of multi-lane storage devices.
SlimSAS™ connector is a 0.60mm pitch interconnect system which offers superior signal integrity performance over standard Mini-SAS solutions.
·Designed for unshielded, internal or external I/O connectors
· Compliant with T10/Serial Attached SCSI (SAS-4) standard
· Supports many assembly options
