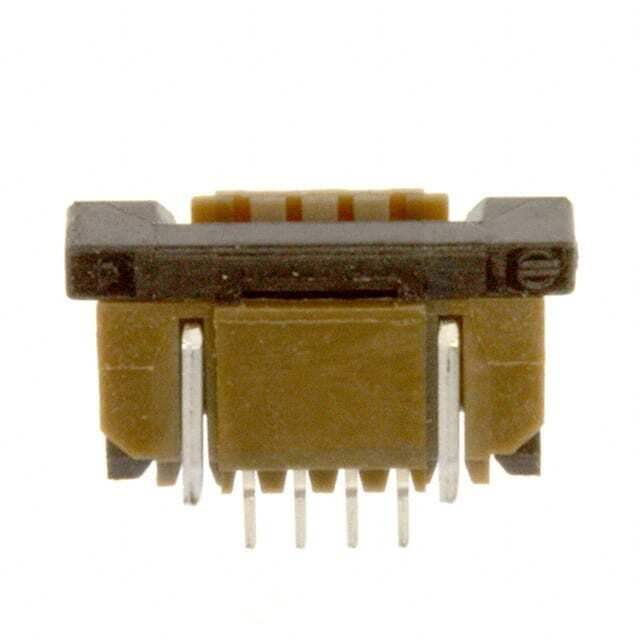

SFW4R-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW4R-2STE1LF

Part No SFW4R-2STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 4POS 1MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Amphenol
Series SFW-R
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 4
Pitch 0.039" (1.00mm)
Termination Kinked Pin
FFC, FCB Thickness 0.30mm
Height Above Board 0.106" (2.70mm)
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Mating Cycles 20
Base Product Number SFW4R
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
California Prop 65 Warning Information
Win Source Part Number 665532-SFW4R-2STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW4R-2STE1LF CAD Model

Description

The 665532-SFW4R-2STE1LF is a FFC, FPC (Flat Flexible) Connector Assembly from Amphenol.

  • Series: SFW-R
  • Positions: 4
  • Pitch: 0.039" (1.00mm)
  • Feature: Zero Insertion Force (ZIF)
  • Termination: Kinked Pin
  • Contact Finish: Tin
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 100V
  • Height Above the Board: 0.106" (2.70mm)
  • FFC, FPC Thickness: 0.30mm
  • Package: Tape & Reel
  • Housing Material: Polyphenylene Sulfide (PPS), Glass Filled
  • Flammability Rating: UL94 V-0
  • Mounting: Surface or Right Angle
  • Operating Temperature: -55°C to 105°C
  • Mating Cycle: 20
  • Actuator Color: Brown
  • ECCN: EAR99
  • Ideal for: Various applications in the electronics industry
