Same model may have multiple batches, images only for reference.

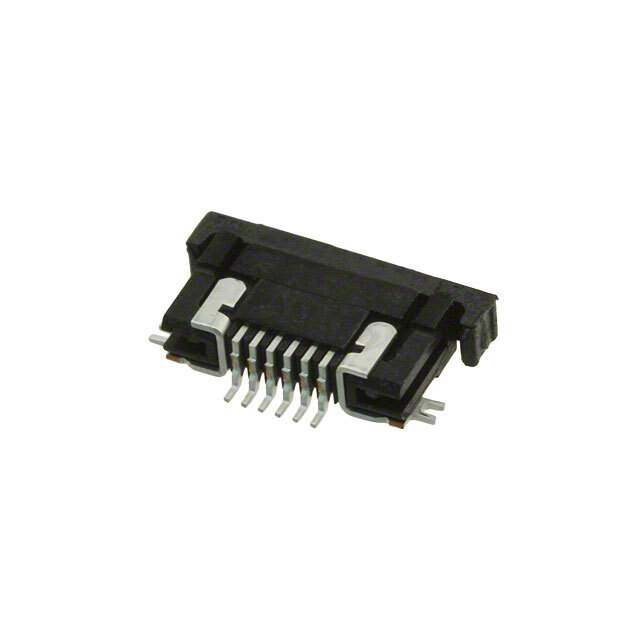

SFV6R-1STE1HLF Real Image
Same model may have multiple batches, images only for reference.

SFV6R-1STE1HLF

Part No SFV6R-1STE1HLF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 6POS 0.50MM R/A / 6 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Amphenol ICC (FCI)
Packaging Reel - TR
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 6
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.33mm
Height Above Board 0.071" (1.80mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA), Nylon, Glass Filled, Halogen Free
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Actuator Color Black
Mating Cycles 20
Base Product Number SFV6R
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 609-4332-1,609-4332-2,609-4332-6,SFV6R1STE1HLF
Standard Package 3,000
Win Source Part Number 1333276-SFV6R-1STE1HLF
Ultra Librarian 3D Model Ultra Librarian SFV6R-1STE1HLF CAD Model

Description

The Amphenol ICC (FCI) SFV6R-1STE1HLF is a FFC, FPC (Flat Flexible) Connector Assembly that comes in a reel package with 6 positions and a pitch of 0.020" (0.50mm).

  • Connector Features: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Tin
  • Voltage Rating: 50V
  • Height Above the Board: 0.071" (1.80mm)
  • Flat Flex Type: FFC, FPC
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.33mm
  • Locking Feature: Slide Lock
  • Cable End Type: Tapered
  • Housing Material: Polyamide (PA), Nylon, Glass Filled, Halogen Free
  • Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Black
  • Actuator Color: Black
  • Standard Package: 3,000
  • Mounting: Surface Mount, Right Angle
  • RoHS Compliant: True
  • Temperature Range: -55°C to 105°C
