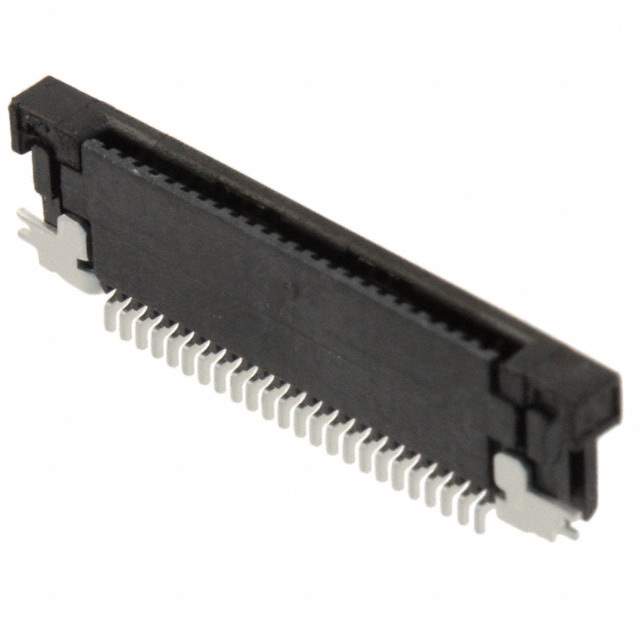

Same model may have multiple batches, images only for reference.

SFV24R-1STE1HLF

Name: SFV24R-1STE1HLF
Brand: Amphenol
SKU: 1333389
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SFV24R-1STE1HLF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 24POS 0.50MM R/A / 24 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Amphenol ICC (FCI)
Packaging	Reel - TR
Flat Flex Type	FFC, FPC
Mounting	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	24
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm, 0.33mm
Height Above Board	0.071" (1.80mm)
Locking Feature	Slide Lock
Cable End Type	Notched
Contact Material	Phosphor Bronze
Contact Finish	Tin
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	20
Base Product Number	SFV24R
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	609-4320-2,609-4320-6,SFV24R1STE1HLF,609-4320-1
Standard Package	3,000
Win Source Part Number	1333389-SFV24R-1STE1HLF
Ultra Librarian 3D Model	Ultra Librarian SFV24R-1STE1HLF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) SFV24R-1STE1HLF is a connector assembly designed for FFC and FPC (Flat Flexible) connectors.

Positions: 24
Pitch: 0.020" (0.50mm)
Features: Zero Insertion Force (ZIF)
Locking: Slide Lock
Cable End Type: Notched
Housing: Liquid Crystal Polymer (LCP) and Glass Filled, Halogen-Free Material
Actuator: Polyphenylene Sulfide (PPS) and Glass Filled, Halogen-Free Material
Voltage Rating: 50V
Temperature Range: -55°C to 105°C
Mounting Type: Surface Mount, Right-Angle
Height Above Board: 0.071" (1.80mm)
Current Rating: 0.5A
RoHS Compliant: Yes
