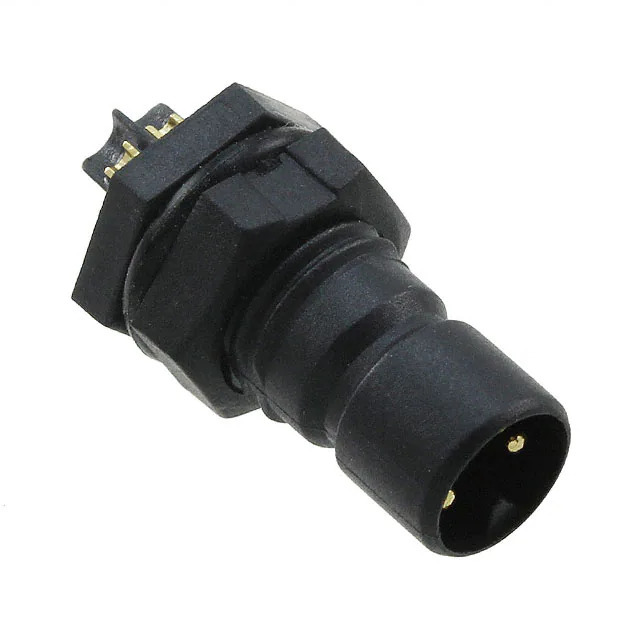

Same model may have multiple batches, images only for reference.
Q8D-04PMMS-QF8001 Amphenol
Same model may have multiple batches, images only for reference.

Q8D-04PMMS-QF8001

Part No Q8D-04PMMS-QF8001
Manufacturer Amphenol
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 4P GOLD SLDR CUP / 4 Position Circular Connector Receptacle, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Amphenol LTW
Series HS-Lok
Package Bulk
Product Status Active
Connector Type Receptacle, Male Pins
Number of Positions 4
Shell Size - Insert 8-4
Shell Size, MIL -
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Solder Cup
Fastening Type Push-Pull
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Shell Finish -
Contact Finish - Mating Gold
Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Features -
Shielding Unshielded
Current Rating (Amps) 5A
Voltage Rating 300VAC/DC
Cable Opening -
Temperature Range - Operating -40°C ~ 105°C
Backshell Material, Plating -
Contact Material Copper Alloy
Contact Finish Thickness - Mating -
Insert Material Thermoplastic
Applications -
Base Product Number Q8D-04PMMS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1363745-Q8D-04PMMS-QF8001
Ultra Librarian 3D Model Ultra Librarian Q8D-04PMMS-QF8001 CAD Model

Description

The Amphenol LTW HS-Lok Q8D-04PMMS-QF8001 is a panel mount circular connector assembly.

  • Current Rating: 5A
  • Fastening Type: Push-Pull
  • Color: Black
  • Shielding: Unshielded
  • Connector Type: Receptacle
  • Contact Gender: Male Pins
  • Number of Positions: 4
  • Termination Method: Solder Cup
  • Contact Finish: Gold
  • Ingress Protection: IP68
  • Voltage Rating: 300VAC/DC
  • Shell Size: 8-4
  • Shell Material: Thermoplastic
