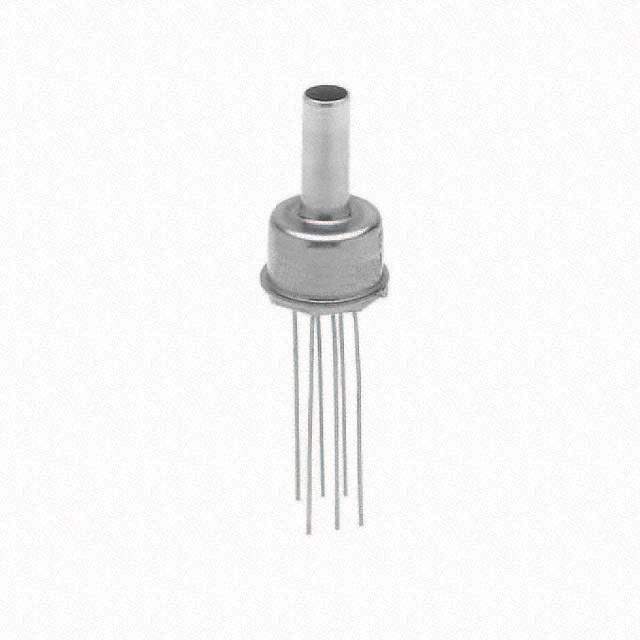

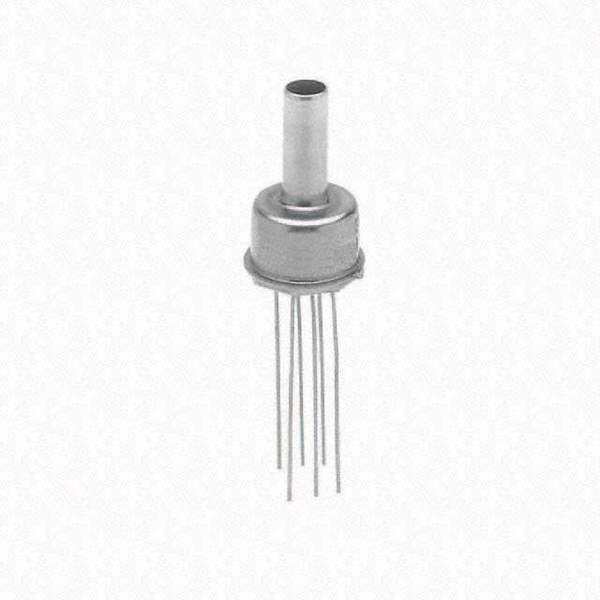

NPH-8-100GH Real Image
Same model may have multiple batches, images only for reference.

NPH-8-100GH

Part No NPH-8-100GH
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI GAUGE TO-8 / Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.19" (4.83mm) Tube 0 mV ~ 100 mV TO-233AA, TO-8-3 Metal Can
Datasheet
NPH-8-100GH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Amphenol NovaSensor
Packaging Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Size Male - 0.19" (4.83mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 58.02PSI (400kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package TO-233AA, TO-8-3 Metal Can
Supplier Device Package TO-8
Base Product Number NPH-8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number NPH-8-100GH-ND,235-1499
Standard Package 45
Win Source Part Number 1336626-NPH-8-100GH
Ultra Librarian 3D Model Ultra Librarian NPH-8-100GH CAD Model

Description

The Amphenol NovaSensor 1336626-NPH-8-100GH pressure sensor is a high-performance device that can be used in various applications such as board mount.

  • Pressure Type: Vented Gauge
  • Maximum Pressure: 58.02PSI (400kPa)
  • Operating Pressure: 15PSI (103.42kPa)
  • Output Type: Wheatstone Bridge
  • Output: 0 mV to 100 mV
  • Accuracy: ±0.1%
  • Supplier Device Package: TO-8
  • Port Style: Barbless
  • Port Size: male - 0.19" (4.83mm) tube
  • Temperature Range: -40°C to 125°C
  • Temperature Compensation: Yes
  • Packaging: Bulk
