NPC-1210-015G-3-S Real Image
Same model may have multiple batches, images only for reference.

NPC-1210-015G-3-S

Part No NPC-1210-015G-3-S
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSIA 0-100MV DIP / Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.13" (3.23mm) Tube 0 mV ~ 100 mV 8-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Amphenol NovaSensor
Packaging Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Size Male - 0.13" (3.23mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package 8-DIP Module
Base Product Number NPC-1210
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number NPC-1210-015G-3-S-ND,235-1494
Standard Package 37
Win Source Part Number 1336610-NPC-1210-015G-3-S
Ultra Librarian 3D Model Ultra Librarian NPC-1210-015G-3-S CAD Model

Description

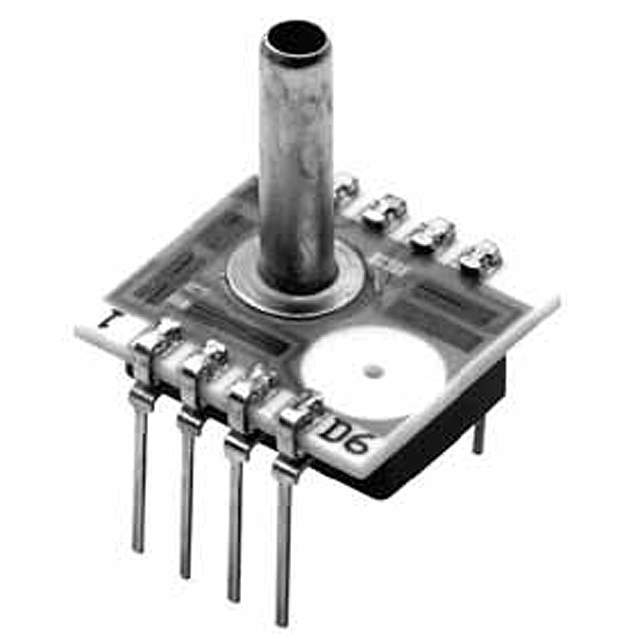

The Amphenol NovaSensor NPC-1210-015G-3-S is a temperature-compensated pressure sensor designed for board mount applications.

  • Mounting Type: Board Mount
  • Pressure Type: Vented Gauge
  • Operating Pressure: 15 PSI
  • Maximum Pressure: 45 PSI
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV to 100 mV
  • Accuracy: ±0.1%
  • Port Size: male - 0.13-inch tube
  • Port Style: Barbless
  • Operating Temperature: -40°C to 125°C
  • Package: 8-DIP module
  • RoHS Compliant: Yes
  • ECCN: EAR99
