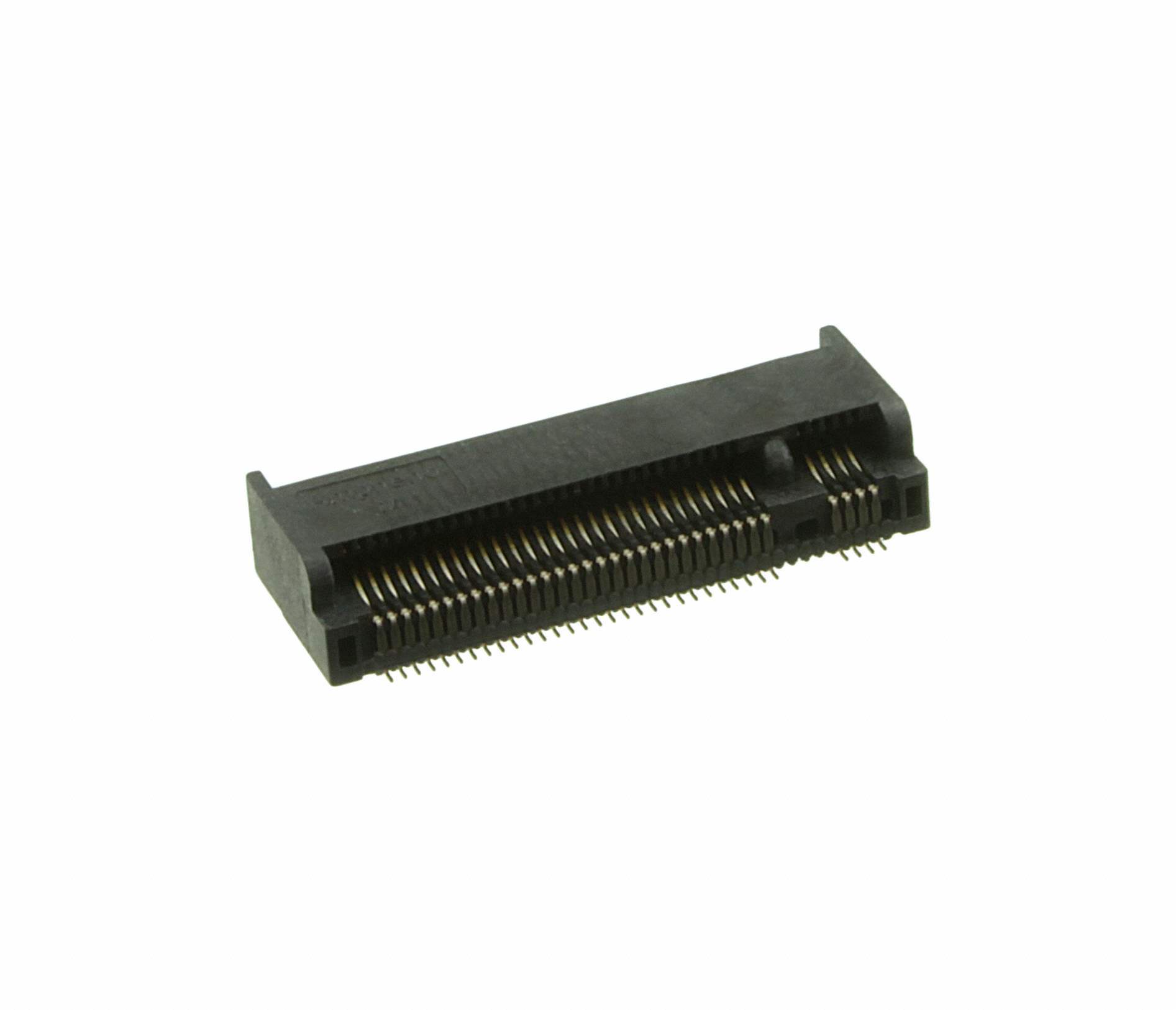

MDT420M01001Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

MDT420M01001

Part No MDT420M01001
Manufacturer Amphenol
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN M.2 FMALE 67POS 0.020 GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201391-MDT420M01001
Manufacturer Amphenol ICC (FCI)
Series M.2
Category Connectors, Interconnects- Card Edge Connectors -Edgeboard Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Card Type M.2 (NGFF) Mini Card
Gender Female
Number of Rows 2
Mounting Type Surface Mount, Right Angle
Contact Material Copper Alloy
Ultra Librarian 3D Model Ultra Librarian MDT420M01001 CAD Model

Description

The M.2 card edge connector from Amphenol ICC (FCI) is part of the M.2 series.

  • Series: M.2
  • Gender: Female
  • Number of Rows: 2
  • Application: M.2 (NGFF) Mini Cards
  • Package: Tape & Reel (TR) / Cut Tape (CT)
  • Contact Material: Copper Alloy
  • Mounting Type: Surface Mount, Right Angle
  • Status: Active
