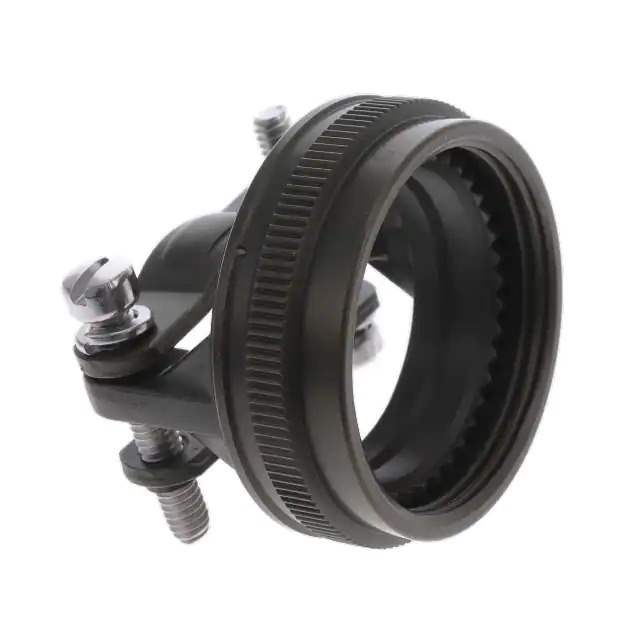

M85049/49-2-22W Real Image
Same model may have multiple batches, images only for reference.

M85049/49-2-22W

Part No M85049/49-2-22W
Manufacturer Amphenol
Catalog Circular Connectors - Backshells and Cable Clamps
Description CONN CABLE CLAMP SZ22 23 OLIVE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Backshells and Cable Clamps
Mfr Amphenol
Series Military, SAE AS85049
Package Bulk
Product Status Active
Type Cable Clamp
Cable Opening 0.381" ~ 0.823" (9.68mm ~ 20.90mm)
Diameter - Outside 1.650" (41.91mm)
Shell Size - Insert 22, 23
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Unshielded
Color Olive Drab
Features Clamp Screws
For Use With/Related Products MIL-DTL-38999 Series I, II
Base Product Number M85049/49
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 925008-M85049/49-2-22W
Ultra Librarian 3D Model Ultra Librarian M85049/49-2-22W CAD Model

Description

The 925008-M85049/49-2-22W is a cable clamp designed for use with MIL-DTL-38999 Series I and II connectors.

  • Material: Aluminum Alloy
  • Plating: Cadmium
  • Features: Clamp Screws
  • Cable Opening: 0.381" to 0.823"
  • Shell Size: 22 and 23
  • Outside Diameter: 1.650"
  • Color: Olive Drab
  • Shielding: Unshielded
  • Packaging: Bulk
  • Standard Package: 25 pieces
