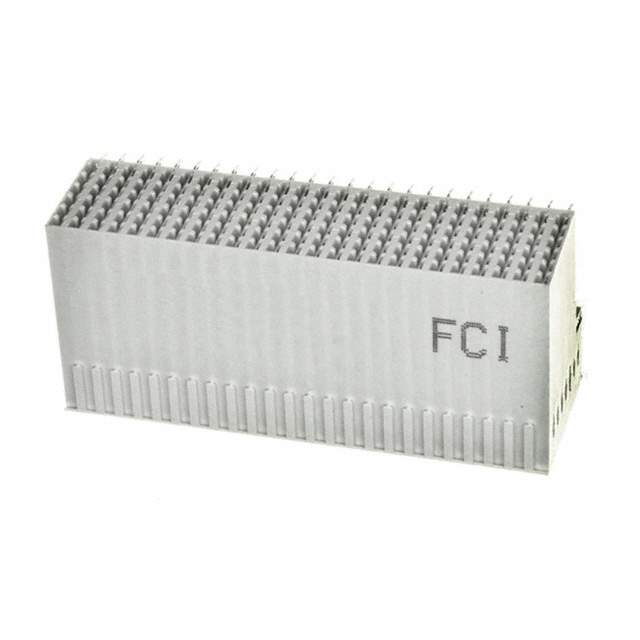

HM2R88PA8100N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2R88PA8100N9LF

Part No HM2R88PA8100N9LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RECEPT 200POS 2MM PRESS-FIT / 200 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Hard Metric, Standard
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Receptacle, Female Sockets
Connector Style E 25
Number of Positions 200
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 8
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HM2R88
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-2150,2266-HM2R88PA8100N9LF
Standard Package 24
Win Source Part Number 1333256-HM2R88PA8100N9LF
Ultra Librarian 3D Model Ultra Librarian HM2R88PA8100N9LF CAD Model

Description

The Amphenol ICC (FCI) HM2R88PA8100N9LF connector is a hard metric standard backplane connector with a 200 position and 0.079-inch pitch.

  • Type: Female socket receptacle
  • Termination: Press-fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Voltage Rating: 750Vrms
  • Current Rating: 1.5A
  • RoHS Compliant: Yes
  • Temperature Range: -55°C to 125°C
  • Mounting: Right-angled, board edge mounted
