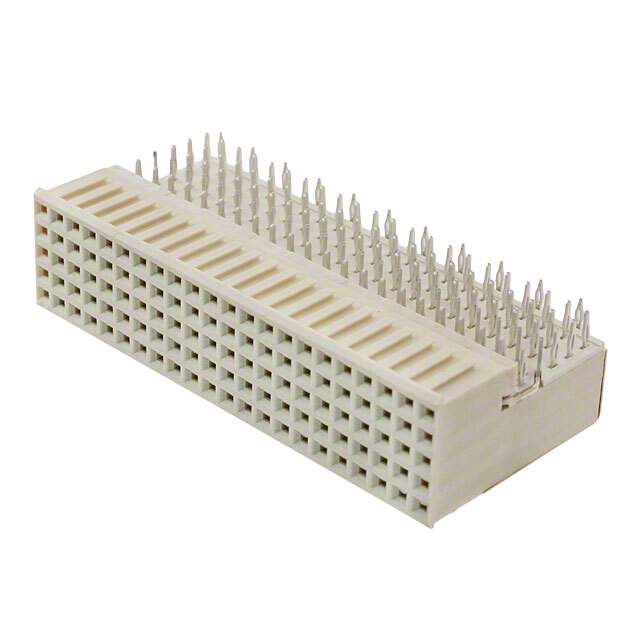

HM2R70PA5108N9LF Real Image
Same model may have multiple batches, images only for reference.

HM2R70PA5108N9LF

Part No HM2R70PA5108N9LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RECEPT 132POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 132 (110 + 22 Ground) Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
Manufacturer AMPHENOL
Series Millipacs®
Package Tray
Operating Temperature Range -55°C ~ 125°C
Mounting Board Edge, Through Hole, Right Angle
Family Name HM2R70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number Q6555902A, HM2R70PA5108N9LF-ND, 609-3631
Quantity per package 36
Popularity High
Supply and Demand Status Balance
Win Source Part Number 920329-HM2R70PA5108N9LF
Ultra Librarian 3D Model Ultra Librarian HM2R70PA5108N9LF CAD Model

Description

The AMPHENOL 920329-HM2R70PA5108N9LF is a Millipacs® connector with 132 (110 + 22 ground) position receptacle, female sockets connector 0.079" (2.00mm) board edge, through hole, right angle.

  • Positions: 132 (110 + 22 ground)
  • Connector Type: Receptacle, Female Sockets
  • Pitch: 0.079" (2.00mm)
  • Mounting: Board Edge, Through Hole, Right Angle
  • Temperature Range: -55°C ~ 125°C
  • Package: Tray
  • Family: HM2R70
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4040
