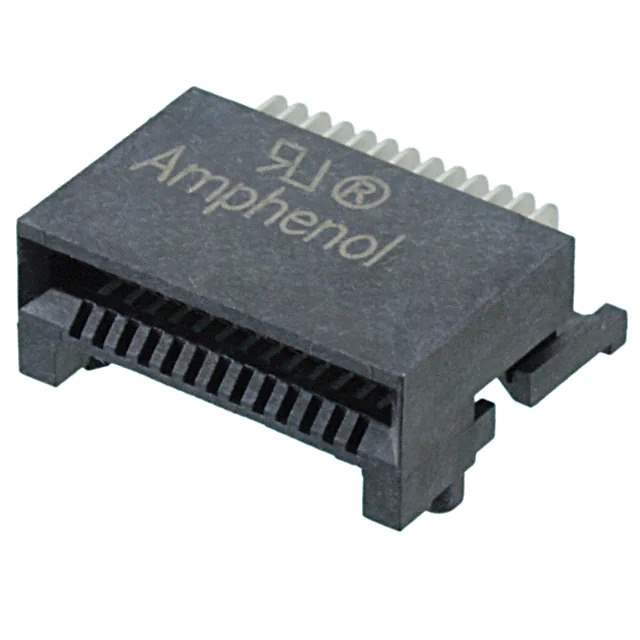

FS1-R26-2000 Real Image
Same model may have multiple batches, images only for reference.

FS1-R26-2000

Part No FS1-R26-2000
Manufacturer Amphenol
Catalog Pluggable Connectors
Description CONN MINI SAS RCP 26P SLD RA SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Pluggable Connectors - Pluggable Connector Assemblies
Mfr Amphenol
Series MiniSAS
Package Tape & Reel
Product Status Active
Connector Style Receptacle
Connector Type SAS, Mini
Number of Positions 26
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number FS1-R26
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848955-FS1-R26-2000
Ultra Librarian 3D Model Ultra Librarian FS1-R26-2000 CAD Model

Description

The MiniSAS series is a range of pluggable connector assemblies designed for use in high-speed data transmission applications.

  • Number of Positions: 26
  • Features: Board Guide
  • Connector Type: SAS, Mini
  • Termination: Solder
  • Contact Finish: Gold
  • Packaging: Tape & Reel (TR)
  • Standard Package: 500 pcs
  • Mounting Type: Surface Mount, Right Angle
