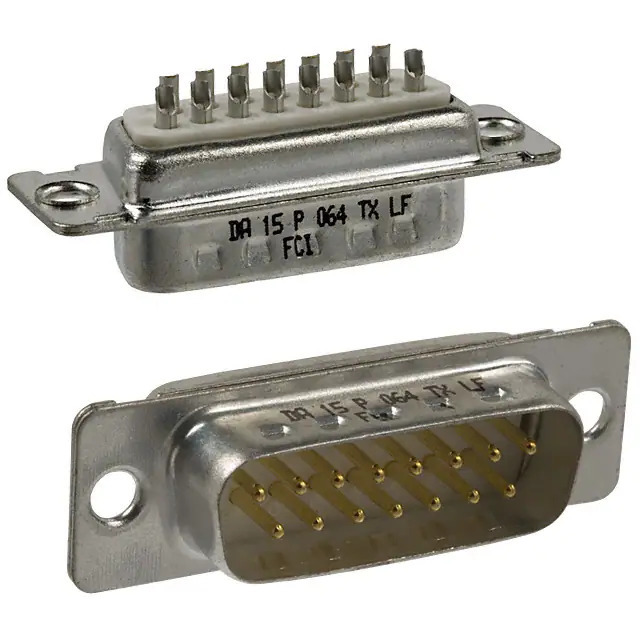

DA15P064TXLF Amphenol
Same model may have multiple batches, images only for reference.

DA15P064TXLF

Part No DA15P064TXLF
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS SLDR CUP / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (FCI)
Series D
Package Bulk
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection -
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A per Contact
Backset Spacing -
Features Grounding Indents
Voltage Rating 300V
Color Natural
Contact Form -
Dielectric Material Thermoplastic
Wire Gauge -
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Base Product Number DA15P064
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1365123-DA15P064TXLF
Ultra Librarian 3D Model Ultra Librarian DA15P064TXLF CAD Model

Description

The 1365123-DA15P064TXLF is a D-sub connector assembly from Amphenol ICC (FCI) D series.

  • Manufacturer: Amphenol ICC (FCI)
  • Series: D
  • Grounding: Grounding Indents
  • Current Rating (Amps): 5A
  • Voltage Rating: 300V
  • Number of Positions: 15
  • Number of Rows: 2
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Shell Material, Finish: Steel, Tin Plated
  • Flammability Rating: UL94 V-0
