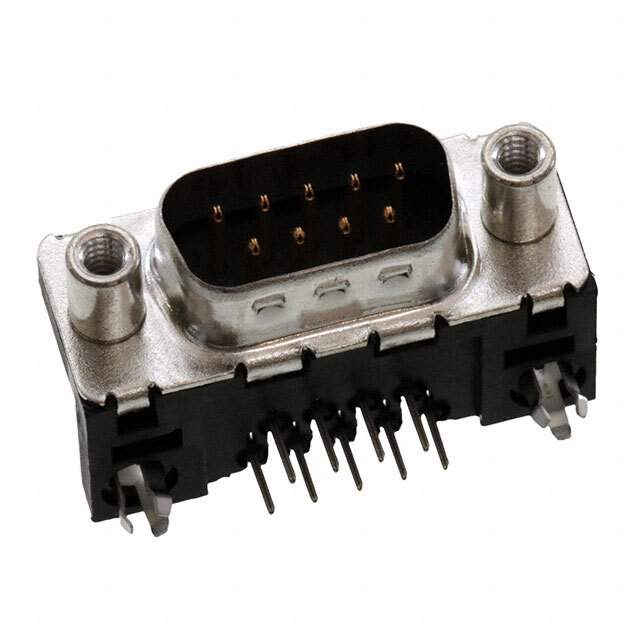

The Amphenol ICC (FCI) D09P33E6GV00LF is a 9-position D-Sub connector with a plug connector type and male pins.

• Connector Type: D-Sub
• Position: 9-position
• Connector Type: plug connector
• Pins: male pins
• Shell Material: steel
• Shell Plating: tin-nickel plating
• Voltage Rating: 300V
• Current Rating: 5A per contact
• Mounting Type: through-hole, right angle
• Backset Spacing: 0.318" (8.08mm)
• Contact Finish: gold or gold GXT™
• Contact Finish Thickness: 30.0µin (0.76µm)
• Features: board lock, grounding indents, and mounting brackets
• Contact Type: signal
• Termination: solder
• Dielectric Material: polybutylene terephthalate (PBT)
• Material Flammability Rating: UL94 V-0
