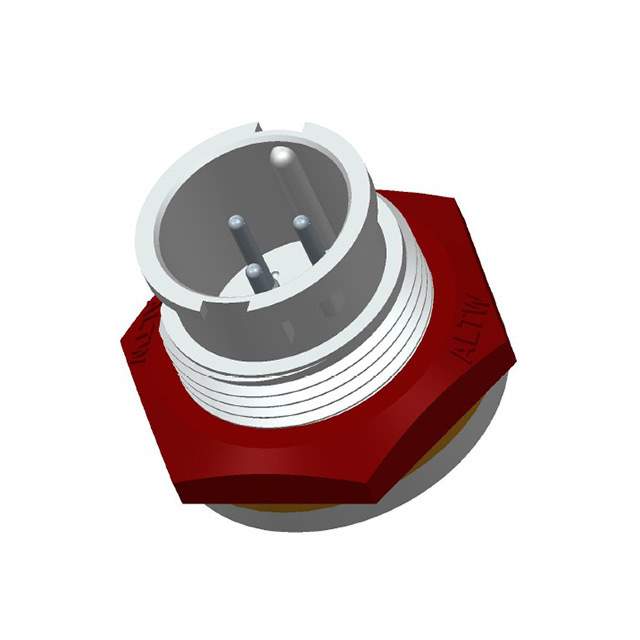

ABD-03PMMS-LC7001 Real Image
Same model may have multiple batches, images only for reference.

ABD-03PMMS-LC7001

Part No ABD-03PMMS-LC7001
Manufacturer Amphenol
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 3P GOLD SLDR CUP / 3 Position Circular Connector Receptacle, Male Pins Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Amphenol LTW
Series StandarD
Package Tray
Connector Type Receptacle, Male Pins
Number of Positions 3
Shell Size - Insert B
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Solder Cup
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Polyamide (PA) , Nylon, Glass Filled
Contact Finish - Mating Gold
Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Current Rating (Amps) 5A
Temperature Range - Operating -40°C ~ 105°C
Contact Material Copper Alloy
Insert Material Polyamide (PA) , Nylon, Glass Filled
Base Product Number ABD-03PMMS
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1338995-ABD-03PMMS-LC7001
Ultra Librarian 3D Model Ultra Librarian ABD-03PMMS-LC7001 CAD Model

Description

The ABD-03PMMS-LC7001 from Amphenol LTW is a circular connector assembly that is designed to provide a reliable and durable connection.

  • Connector Type: Receptacle with Male Pins
  • Fastening Type: Bayonet Lock
  • Ingress Protection: IP67
  • Shell Material: Polyamide (PA), Nylon, Glass Filled
  • Contact Material: Copper Alloy
  • Current Rating: 5A
  • Operating Temperature: -40°C to 105°C
  • Mounting: Bulkhead Front Side Nut
  • Shell Size: B
