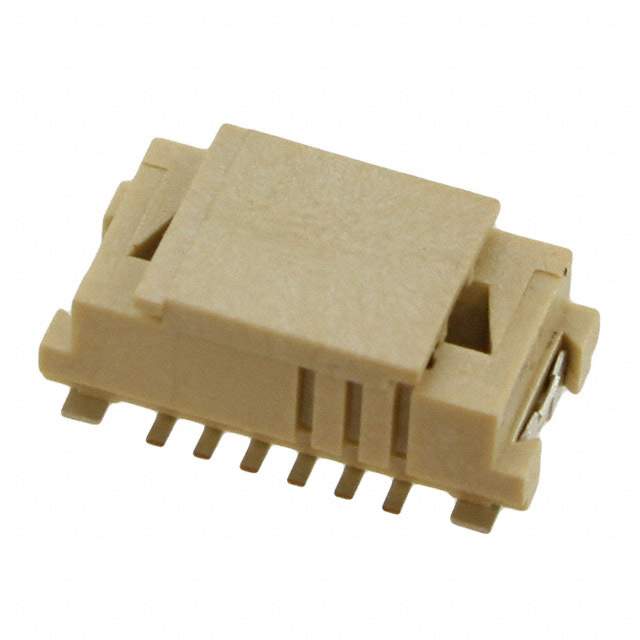

Same model may have multiple batches, images only for reference.

91931-31111LF

Name: 91931-31111LF
Brand: Amphenol
SKU: 1134417
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	91931-31111LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN RCPT 11POS SMD GOLD / 11 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold or Gold, GXT™
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Amphenol ICC (FCI)
Series	Conan™, MezzSelect™
Package	Tape & Reel
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	11
Pitch	0.039" (1.00mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Solder Retention
Contact Finish	Gold or Gold, GXT™
Contact Finish Thickness	15.0µin (0.38µm)
Mated Stacking Heights	4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 7.52mm
Height Above Board	0.129" (3.28mm)
Base Product Number	91931
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	9193131111LF,2266-91931-31111LF,609-4460-6,91931-31111LF-ND,609-4460-1,609-4460-2
Standard Package	800
Win Source Part Number	1134417-91931-31111LF
Ultra Librarian 3D Model	Ultra Librarian 91931-31111LF CAD Model

Alternative Products

Description

The Conan™, MezzSelect™ series 11 position rectangular connector array is a reliable solution for board-to-board interconnects. The connector is manufactured by Amphenol ICC (FCI) and has alternative part numbers of 9193131111LF, 2266-91931-31111LF, 609-4460-6, 91931-31111LF-ND, 609-4460-1, and 609-4460-2.

Pitch: 0.039" (1.00mm)
Connector Type: Outer Shroud Receptacle
Contact Finish: Gold or Gold GXT™ with a thickness of 15.0µin (0.38µm)
Features: Board Guides and Solder Retention
Mated Stacking Heights: 4.15mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, and 7.52mm
Height Above Board: 0.129" (3.28mm)
Packaging: Tape and Reel
Mounting Type: SMD (SMT)
ECCN: EAR99
REACH: Affected
HTSUS: 8536.69.4040
