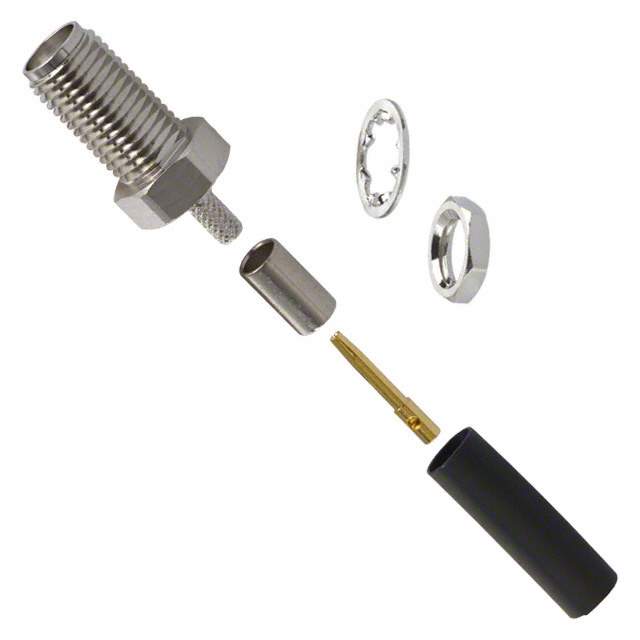

901-9879-RFX Real Image
Same model may have multiple batches, images only for reference.

901-9879-RFX

Part No 901-9879-RFX
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMA JACK STR 50 OHM SOLDER / SMA Connector Jack, Female Socket 50Ohm Panel Mount Solder
Datasheet
901-9879-RFX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Package Bulk
Connector Style SMA
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Crimp
Impedance 50Ohm
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Cable Group RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Silver
Ingress Protection Weatherproof
Center Contact Material Beryllium Copper
Includes 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Voltage Rating 375 V
Mating Cycles 500
Base Product Number 901-98
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 1352076-901-9879-RFX
Ultra Librarian 3D Model Ultra Librarian 901-9879-RFX CAD Model

Description

The 1352076-901-9879-RFX is a 50 Ohm SMA Jack Female Socket Coaxial Connector Assembly from Amphenol RF.

  • Impedance: 50 Ohms
  • Connector Type: SMA Jack Female Socket
  • Weatherproof: Yes
  • Voltage Rating: 375 V
  • Frequency Range: Up to 12.4 GHz
  • Body Material: Brass
  • Body Finish: Nickel
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Shield Termination: Crimp
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mounting Feature: Bulkhead Front Side Nut
  • Cable Compatibility: RG-174, 188, 188A, 316, LMR-100, and M17/119-RG174
  • Pieces: 6 (1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut)
  • Operating Temperature: -65°C to 165°C
