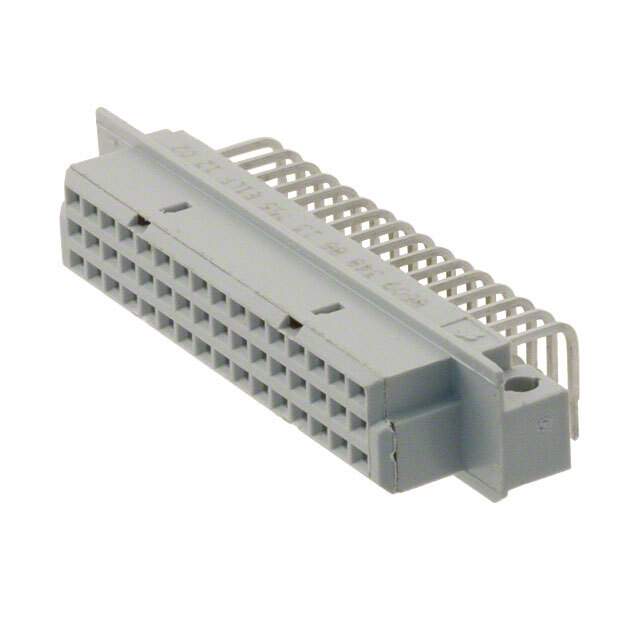

86093488613755E1LF Real Image
Same model may have multiple batches, images only for reference.

86093488613755E1LF

Part No 86093488613755E1LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB RA GOLD / 48 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>DIN 41612
Manufacturer Amphenol ICC (FCI)
Packaging Tray
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style R/2 (1/2 R)
Level, Class 2
Mounting Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 1.5A
Material Flammability Rating UL94 V-0
Material - Insulation Polyester Thermoplastic
Base Product Number 8609348861
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-2114,2266-86093488613755E1LF
Standard Package 16
Win Source Part Number 1333110-86093488613755E1LF
Ultra Librarian 3D Model Ultra Librarian 86093488613755E1LF CAD Model

Description

The Amphenol ICC (FCI) 1333110-86093488613755E1LF is a DIN 41612 backplane connector that is a receptacle with female sockets.

  • Packaging: Tray
  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Unspecified
  • Positions Loaded: All
  • Rows: 3
  • Termination: Solder
  • Contact Finish: Gold
  • Insulation Material: Polyester Thermoplastic
  • Flammability Rating: UL94 V-0
  • Standard Package: 16
  • Mounting Type: Through Hole, Right Angle
  • Style: R/2 (1/2 R)
  • Level, Class: 2
  • Temperature Range - Operating: -55°C ~ 125°C
  • ECCN: EAR99
  • Current Rating: 1.5A
  • REACH Affected: Yes
  • HTSUS: 8536.69.4040
  • Other Part Numbers: 609-2114 and 2266-86093488613755E1LF
  • Base Product Number: 8609348861
  • RoHS Compliant: Yes
