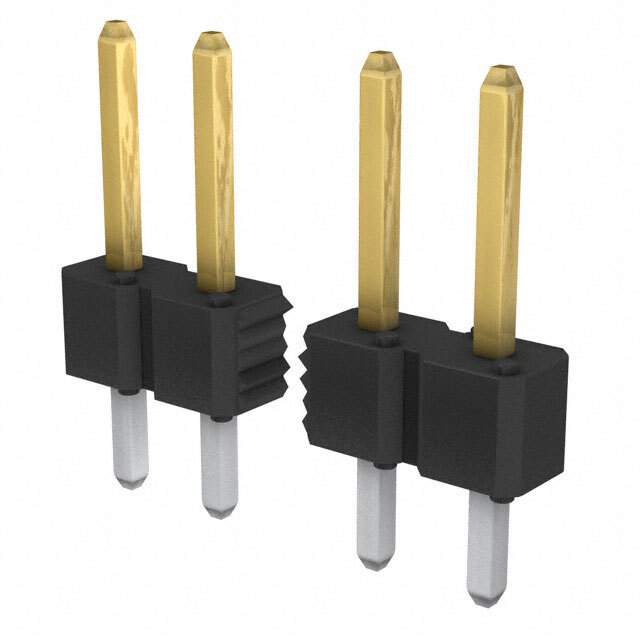

Same model may have multiple batches, images only for reference.

77311-818-36LF

Name: 77311-818-36LF
Brand: Amphenol
SKU: 1209907
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	77311-818-36LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 36POS 2.54MM / Connector Header Through Hole 36 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK®
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	36
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Contact Finish Thickness - Post	78.7µin (2.00µm)
Base Product Number	77311
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-4436,7731181836LF,77311-818-36LF-ND
Standard Package	100
Win Source Part Number	1209907-77311-818-36LF
Ultra Librarian 3D Model	Ultra Librarian 77311-818-36LF CAD Model

Description

The 1209907-77311-818-36LF from Amphenol ICC (FCI) is a rectangular connector header that is used to connect male pins in a circuit.

Positions: 36
Loaded: All positions
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold or Gold, GXT
Temperature Range: -65°C to 125°C
Current Rating: 3A per contact
Series: BERGSTIK
Package: Bulk
