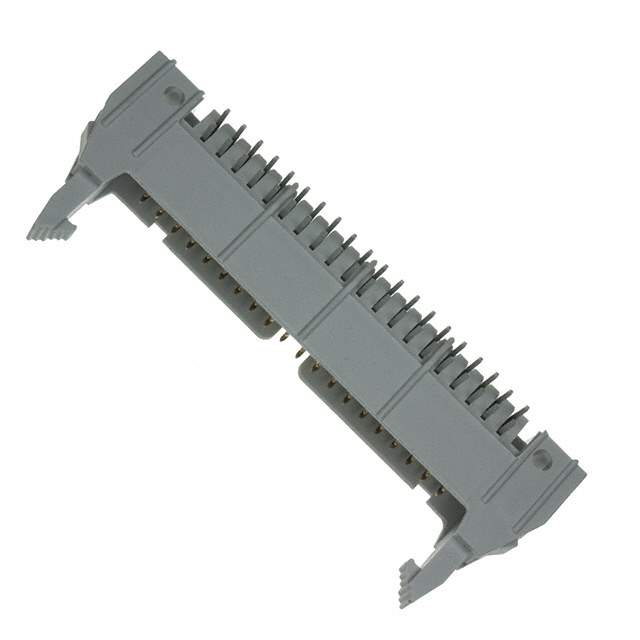

71922-140LF Real Image
Same model may have multiple batches, images only for reference.

71922-140LF

Part No 71922-140LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN HEADER R/A 40POS 2.54MM / Connector Header Through Hole, Right Angle 40 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.339" (8.61mm)
Contact Shape Square
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic, Glass Filled
Features Keying Slot, Mounting Flange
Material Flammability Rating UL94 V-0
Insulation Color Gray
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number 71922
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 71922140LF,609-1765,2266-71922-140LF
Standard Package 7
Win Source Part Number 1212991-71922-140LF
Ultra Librarian 3D Model Ultra Librarian 71922-140LF CAD Model

Description

The Quickie™ series male pin header connector is a perfect fit for rectangular connectors.

  • Features: Keying Slot and Mounting Flange
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks
  • Contact Material: Phosphor Bronze
  • Insulation Material: Thermoplastic, Glass Filled
  • Connector Type: Header
  • Contact Type: Male Pin
  • Shrouded: Yes, 4 Walls
  • Mounting Type: Right Angle Through-Hole
  • Contact Finish-Mating: Gold with GXT™
  • Contact Finish-Post: Tin
  • Insulation Color: Gray
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Length-Post: 0.114" (2.90mm)
  • Contact Length-Mating: 0.228" (5.80mm)
  • Material Flammability Rating: UL94 V-0
  • Row Spacing-Mating: 0.100" (2.54mm)
  • Application: Board to Cable/Wire
  • Overall Contact Length: -
  • Alternative Parts (Cross-Reference): 71922-140LF
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): -
  • REACH Status: REACH Affected
  • HTSUS: 8536.69.4040
  • Manufacturer: Amphenol ICC (FCI)
  • Other Names: 71922140LF,609-1765,2266-71922-140LF
  • Base Product Number: 71922
