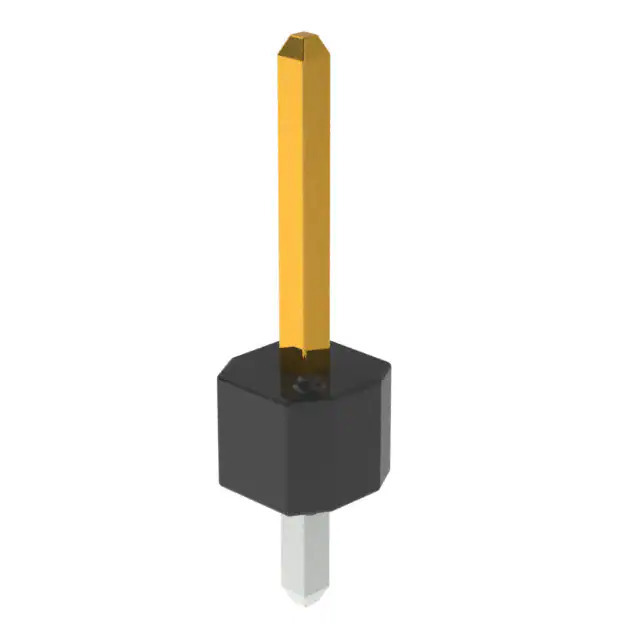

Same model may have multiple batches, images only for reference.

68000-200HLF

Name: 68000-200HLF
Brand: Amphenol
SKU: 1365988
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	68000-200HLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Tape & Reel (TR)
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	Cuttable
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.425" (10.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	-
Temperature Range - Operating	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	68000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1365988-68000-200HLF
Ultra Librarian 3D Model	Ultra Librarian 68000-200HLF CAD Model

Description

The Amphenol ICC (FCI) 68000 BERGSTIK® II Header is a male pin connector designed for board-to-board applications.

Current Rating: 3A per contact
Pitch: 0.100" (2.54mm)
Shrouding: Unshrouded
Fastening Type: Push-Pull
Termination: Solder
Contact Finish: Gold or Gold, GXT™
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Insulation Color: Black
Operating Temperature: -65°C to 125°C
Package: Tape & Reel (TR)
Lifecycle Status: Active
