Same model may have multiple batches, images only for reference.

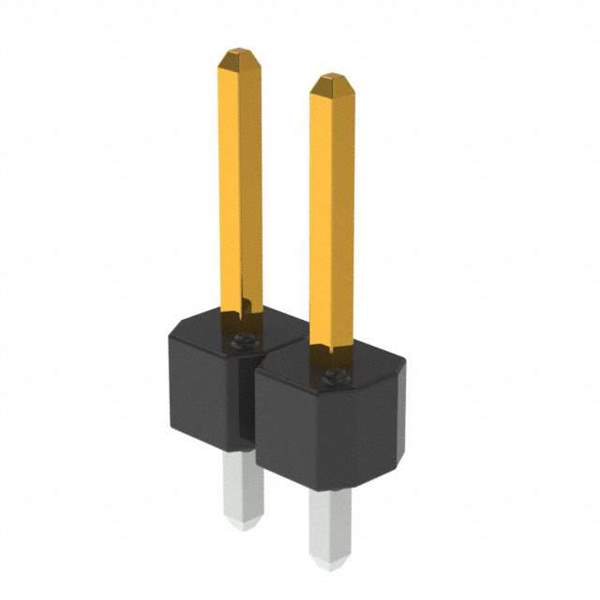

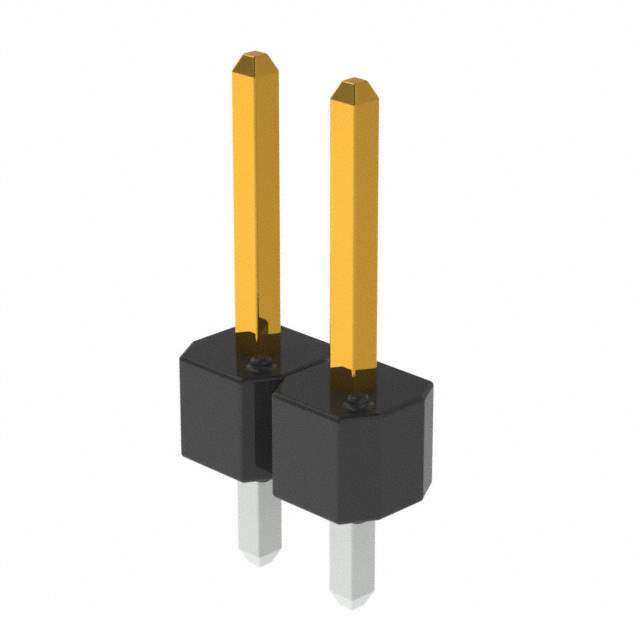

68000-102HLF

Name: 68000-102HLF
Brand: Amphenol
SKU: 1198426
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	68000-102HLF
Manufacturer	Amphenol
Catalog	Circular Connectors - Housings
Description	CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	BERGSTIK® II
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.425" (10.80mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold or Gold, GXT™
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Material	Phosphor Bronze
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A per Contact
Base Product Number	68000
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-3500,68000-102HLF-ND,68000102HLF
Standard Package	1,000
Win Source Part Number	1198426-68000-102HLF
Ultra Librarian 3D Model	Ultra Librarian 68000-102HLF CAD Model

Description

The BERGSTIK II series male pin header connector is a rectangular connector that is commonly used in electronic devices.

Series: BERGSTIK II
Connector Type: Pin Header
Gender: Male
Fastening Type: Push-Pull
Mounting Type: Through Hole
Contact Material: Phosphor Bronze
Voltage Rating: - volts
Contact Shape: Square
Operating Temperature: -65°C to 125°C
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: Gold or Gold, GXT
Contact Finish Thickness-Mating: 30.0µin (0.76µm)
Contact Length-Post: 0.095 inches (2.41mm)
Insulation Height: 0.100 inches (2.54mm)
Contact Length: 0.425 inches (10.80mm)
Standard Package: 1,000
Insulation Color: Black
