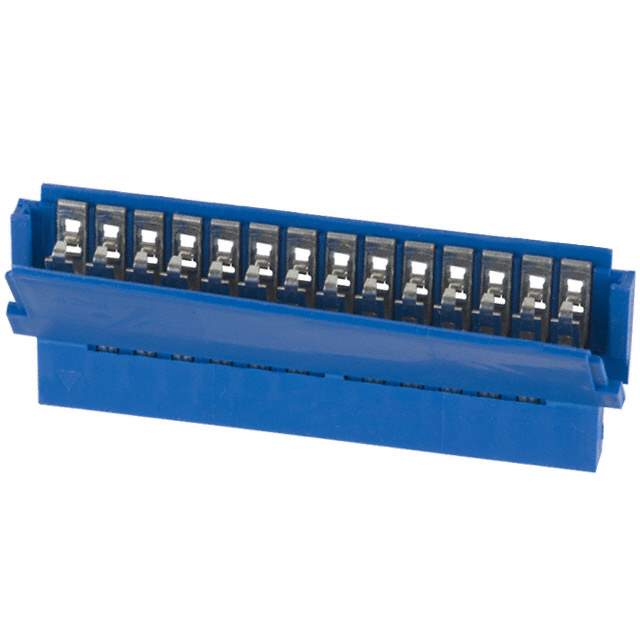

Same model may have multiple batches, images only for reference.

65801-014LF

Name: 65801-014LF
Brand: Amphenol
SKU: 1039349
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	65801-014LF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC RCPT 14POS 2.54MM / 14 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Amphenol ICC (FCI)
Series	Clincher™
Package	Tray
Flat Flex Type	FFC, FPC
Mounting Type	Free Hanging (In-Line)
Connector/Contact Type	Receptacle
Number of Positions	14
Pitch	0.100" (2.54mm)
Termination	Solder
FFC, FCB Thickness	0.33mm
Locking Feature	Slide Lock
Cable End Type	Notched
Contact Material	Copper Nickel Alloy
Contact Finish	Tin
Housing Material	Thermoplastic
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	500V
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	2A
Contact Finish Thickness	100.0µin (2.54µm)
Housing Color	Blue
Actuator Color	Gray
Mating Cycles	100
Base Product Number	65801
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	609-2170,2266-65801-014LF,65801014LF
Standard Package	30
Win Source Part Number	1039349-65801-014LF
Ultra Librarian 3D Model	Ultra Librarian 65801-014LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 1039349-65801-014LF is a Clincher™ series FFC, FPC (Flat Flexible) connector that has 14 positions and a pitch of 0.100" (2.54mm).

Locking Feature: slide lock
Cable End Type: notched
Height Above Board: -
Current Rating: 2A
RoHS: compliant
Voltage Rating: 500V
Supplied In: tray
Standard Package: 30
