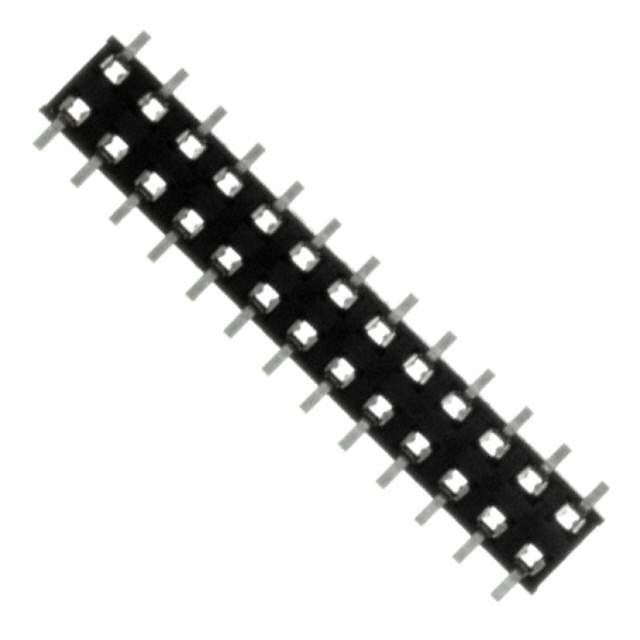

55510-126LF Real Image
Same model may have multiple batches, images only for reference.

55510-126LF

Part No 55510-126LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 26POS 0.079 GOLD SMD / 26 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Amphenol ICC (FCI)
Series Minitek® 2.00mm
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 26
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2A
Voltage Rating 200V
Applications General Purpose, Industrial, Medical
Insulation Material Plastic
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number 55510
Standard Package 22
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340652-55510-126LF
Ultra Librarian 3D Model Ultra Librarian 55510-126LF CAD Model

Description

The AMPHENOL ICC (FCI) 1340652-55510-126LF is a rectangular connector with 26 positions. Amphenol ICC (FCI)

  • Number of Positions: 26
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Fastening Type: Push-Pull
  • Packaging: Tube
  • All Positions Loaded: Yes
  • Pitch: 0.079 inches (2.00mm)
  • Color: Black
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
  • Voltage Rating: 200V
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 22
  • Application: General Purpose, Industrial, Medical
  • Mounting Style: Board-to-Board
  • Mounting Type: Surface Mount
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99.69.4040
  • Base Product Number: 55510
