Same model may have multiple batches, images only for reference.

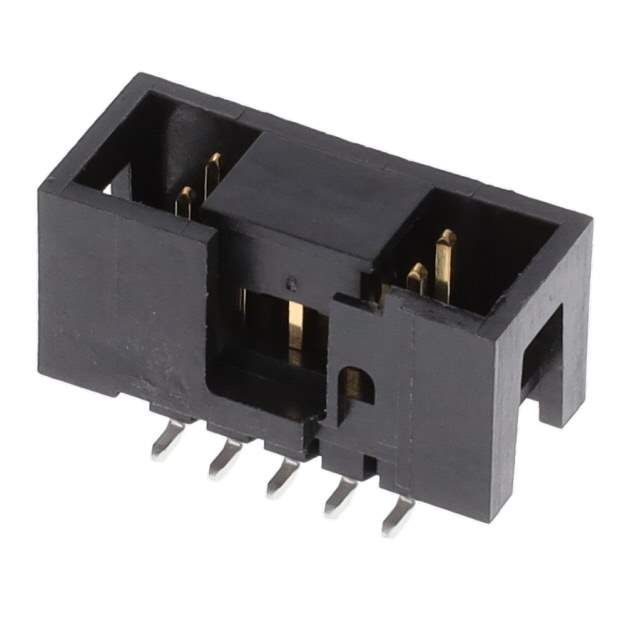

52601-S10-8TLF Real Image
Same model may have multiple batches, images only for reference.

52601-S10-8TLF

Part No 52601-S10-8TLF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 10POS 2.54MM / Connector Header Surface Mount 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Quickie™
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.365" (9.27mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold, GXT™
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Features Pick and Place
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 52601
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-52601-S10-8TLFTR,609-52601-S10-8TLFCT,52601-S10-8TLF-ND,609-52601-S10-8TLFDKR
Standard Package 200
Win Source Part Number 1003426-52601-S10-8TLF
Ultra Librarian 3D Model Ultra Librarian 52601-S10-8TLF CAD Model

Description

The 1003426-52601-S10-8TLF is a male pin header connector that is ideal for use in various applications, including computer peripherals, industrial control systems, and telecommunications equipment.

  • Positions: 10
  • Rows: 2
  • Design: shrouded 4-wall
  • Mounting: surface mount technology (SMT)
  • Pitch: 0.1 inches
  • Packaging: tape and reel
  • Finish: gold
  • RoHS Compliance: compliant
