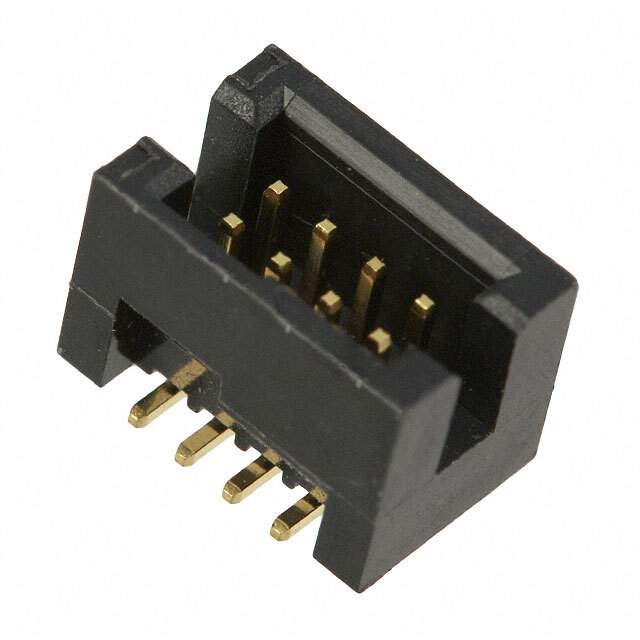

20021221-00108C4LF Real Image
Same model may have multiple batches, images only for reference.

20021221-00108C4LF

Part No 20021221-00108C4LF
Manufacturer Amphenol
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 8POS 1.27MM / Connector Header Surface Mount 8 position 0.050" (1.27mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Amphenol ICC (FCI)
Series Minitek127® 1.27mm
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded 7
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.220" (5.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 1A per Contact
Voltage Rating 125VAC
Contact Finish Thickness - Post 50.0µin (1.27µm)
Base Product Number 20021221
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 609-20021221-00108C4LFTR,609-20021221-00108C4LFCT,609-20021221-00108C4LFDKR,20021221-00108C4LF-ND
Standard Package 500
Win Source Part Number 1024262-20021221-00108C4LF
Ultra Librarian 3D Model Ultra Librarian 20021221-00108C4LF CAD Model

Description

The Amphenol ICC (FCI) 1024262-20021221-00108C4LF connector is a pick and place, rectangular connector with a header and male pins.

  • Series: Minitek127® 1.27mm
  • Positions Loaded: 7
  • Number of Rows: 2
  • Termination: Solder
  • Mounting: SMD (SMT)
  • Package: Tape and Reel
  • Voltage Rating: 125VAC
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • MSL Level: 1 (unlimited)
  • REACH: Affected
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Base Product Number: 20021221
