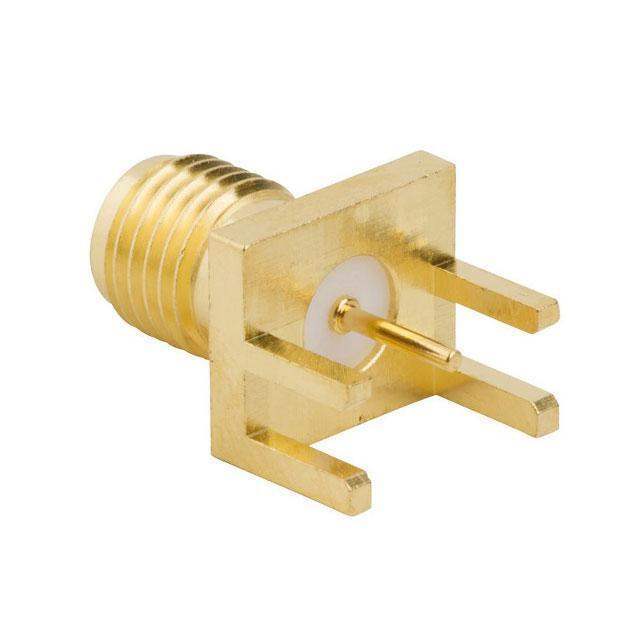

132255-11 Amphenol RF
Same model may have multiple batches, images only for reference.

132255-11

Part No 132255-11
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Accessories
Description CONN SMA RCPT STR 50OHM EDGE MNT
Datasheet
132255-11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1197038-132255-11
Manufacturer Amphenol RF
Category Connectors, Interconnects -Coaxial Connectors (RF) -Coaxial Connector (RF) Assemblies
Package Bulk
Product Status Active
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature -65°C ~ 165°C
Voltage Rating 500 V
Ultra Librarian 3D Model Ultra Librarian 132255-11 CAD Model

Description

The Amphenol RF SMA Coaxial Connector is a high-quality connector designed for use in RF applications.

  • Voltage Rating: 500V
  • Body Finish: Gold
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Operating Temperature: -65°C to 165°C
  • Packaging: Bulk
