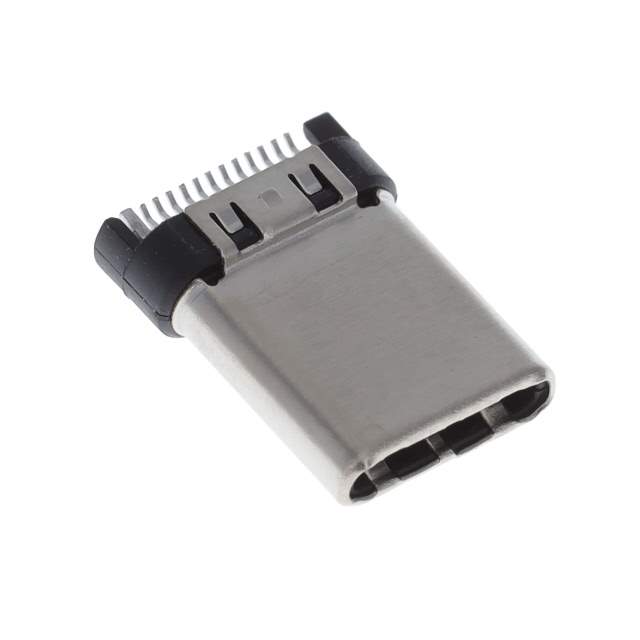

10133475-10001LF Real Image
Same model may have multiple batches, images only for reference.

10133475-10001LF

Part No 10133475-10001LF
Manufacturer Amphenol
Catalog USB, DVI, HDMI Connectors
Description USB3.1 TYPE C PLUG BCONN / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Board Edge, Straddle Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Amphenol ICC (FCI)
Package Tray
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Plug
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Board Edge, Straddle Mount
Mounting Feature Vertical
Termination Solder
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Mating Cycles 10000
Shielding Shielded
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 10133475
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-10133475-10001LF
Standard Package 100
Win Source Part Number 995157-10133475-10001LF
Ultra Librarian 3D Model Ultra Librarian 10133475-10001LF CAD Model

Description

The Amphenol ICC (FCI) 10133475 USB-C (USB TYPE-C) connector is a high-performance connector that is designed for use in applications that require high-speed data transfer.

  • Contacts: 24
  • Shielded: Yes
  • Rated: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
  • Data Transfer Speed: up to 10 Gbps
  • Mounting: vertically
  • Configurations: board edge or straddle mount configurations
  • Temperature Range: -55°C to 85°C
  • Flammability Rating: UL94 V-0
  • Package: tray package
  • Mating Cycle: 10000
