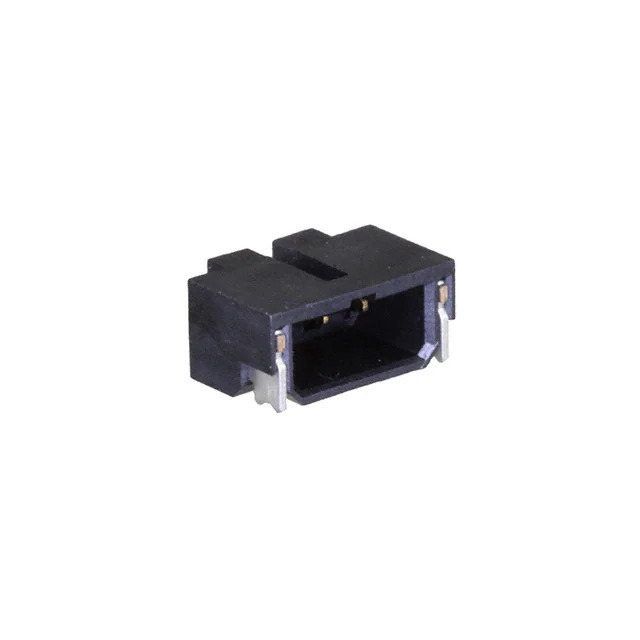

10125839-03RAEHLF

Name: 10125839-03RAEHLF
Brand: Amphenol
SKU: 1362608
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	10125839-03RAEHLF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 3POS 1.2MM / Connector Header Surface Mount, Right Angle 3 position 0.047" (1.20mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol ICC (FCI)
Series	-
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Tab
Pitch - Mating	0.047" (1.20mm)
Number of Positions	3
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.098" (2.50mm)
Contact Shape	Rectangular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.90µin (0.099µm)
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Solder Retention
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	2.00µin (0.051µm)
Applications	-
Base Product Number	10125839
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362608-10125839-03RAEHLF
Ultra Librarian 3D Model	Ultra Librarian 10125839-03RAEHLF CAD Model

Description

The Amphenol ICC (FCI) connector with part number 1362608-10125839-03RAEHLF is a surface mount right angle receptacle. It is part of the rectangular connectors - headers, male pins category.

Number of Contacts: 3
Pitch: 0.047" (1.20mm)
Shrouding: 4 Walls
Termination: Solder
Contact Finish: Gold
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Connection Type: Board to Cable/Wire
