10035146-101LF

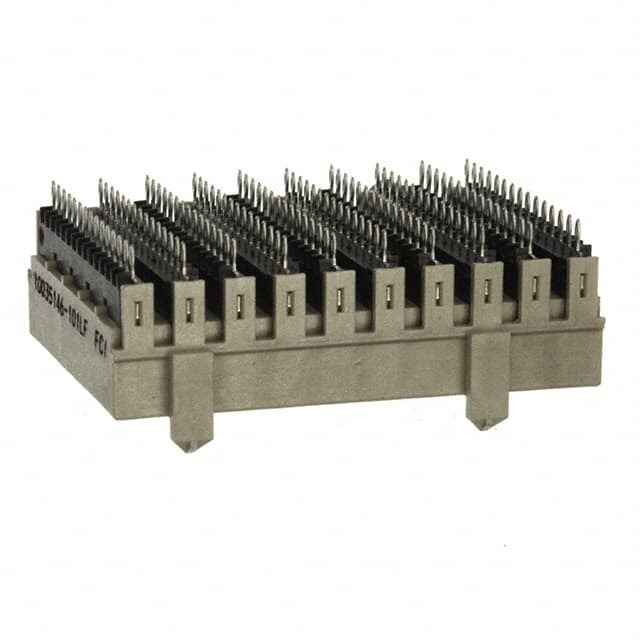

Same model may have multiple batches, images only for reference.

10035146-101LF

Part No 10035146-101LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RCPT HIGH SPEED 150POS PCB / 150 Connector Receptacle, Female Sockets Through Hole Natural High Speed
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Amphenol
Series Airmax VS®
Package Bulk
Product Status Obsolete
Connector Usage Daughtercard
Connector Type Receptacle, Female Sockets
Connector Style High Speed
Number of Positions 150
Number of Positions Loaded All
Pitch 0.055" (1.40mm)
Number of Rows 15
Number of Columns 10
Mounting Type Through Hole
Termination Press-Fit
Contact Layout, Typical 50 Differential Pairs, 50 Ground
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural
Material Flammability Rating UL94 V-0
Base Product Number 10035146
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 904831-10035146-101LF
Ultra Librarian 3D Model Ultra Librarian 10035146-101LF CAD Model

Description

The Airmax VS™ specialized backplane connector is designed for high-speed applications from Amphenol.

  • Positions: 150
  • Mounting Type: Through-hole
  • Termination: Press-fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Design: Color-coded
  • Standard Package: 30 pieces
  • Application: Daughtercard connections
  • Product Status: Active
