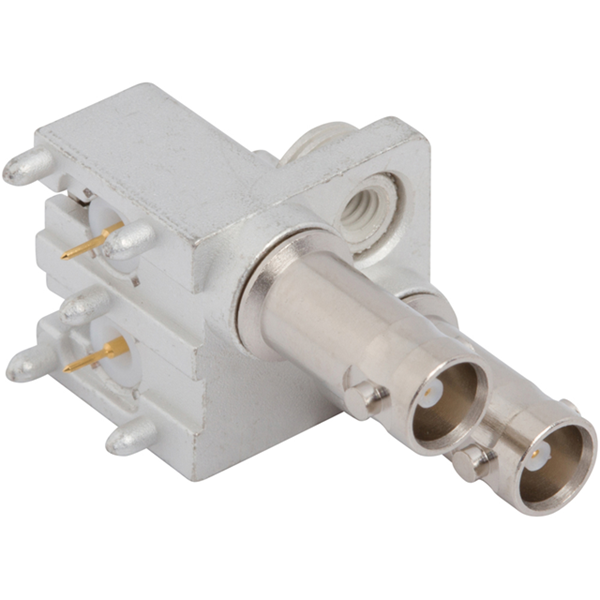

034-1135-12G Real Image
Same model may have multiple batches, images only for reference.

034-1135-12G

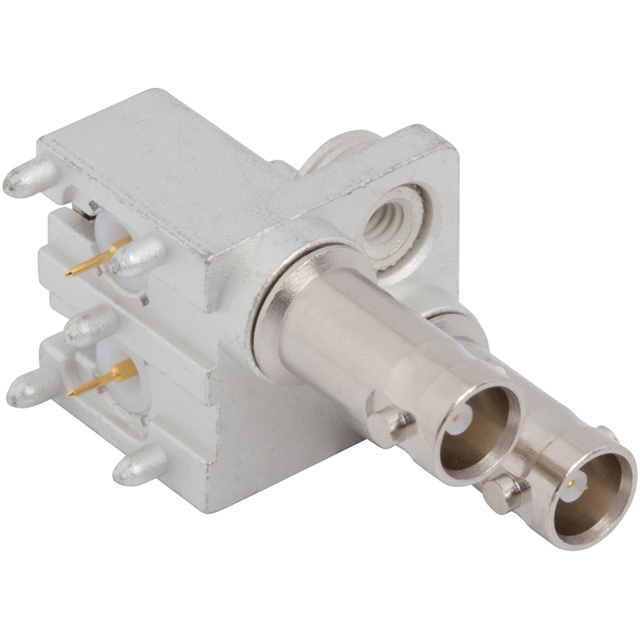

Part No 034-1135-12G
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description HD-BNC DUAL PORT, RIGHT ANGLE PC / BNC, HD Connector Jack, Female Socket 75Ohm Through Hole, Right Angle Solder
Datasheet
034-1135-12G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Package Bulk
Connector Style BNC, HD
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 75Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Bayonet Lock
Frequency - Max 12 GHz
Number of Ports 2
Features Board Guide
Center Contact Material Beryllium Copper
Body Material Brass, Zinc Alloy
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number 034-11
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 1349606-034-1135-12G
Ultra Librarian 3D Model Ultra Librarian 034-1135-12G CAD Model

Description

This Amphenol RF BNC, HD female socket jack connector is a coaxial connector assembly with a bayonet lock fastening type. Bold the product name (e.g., BAV99S,135 → BNC, HD) and manufacturer (e.g., Nexperia USA Inc. → Amphenol RF).

  • Connector Type: Coaxial Connector Assembly
  • Fastening Type: Bayonet Lock
  • Features: Board Guide
  • Maximum Frequency: 12 GHz
  • Connector Style: BNC, HD
  • Shielded: Yes
  • Termination: Solder
  • Connector Material: Brass and Zinc Alloy
  • Center Contact Material: Beryllium Copper with Gold Plating
  • Housing Color: Not Specified
  • Number of Ports: Two
  • Impedance: 75Ohm
  • Mounting: Through Hole
  • Angle: Right Angled
  • Operating Temperature Range: -65°C to 165°C
  • Mating Cycle: 500
  • MSL Level: 1 (Unlimited)
  • REACH: Affected
  • HTSUS Code: 8536.69.4010
