Same model may have multiple batches, images only for reference.

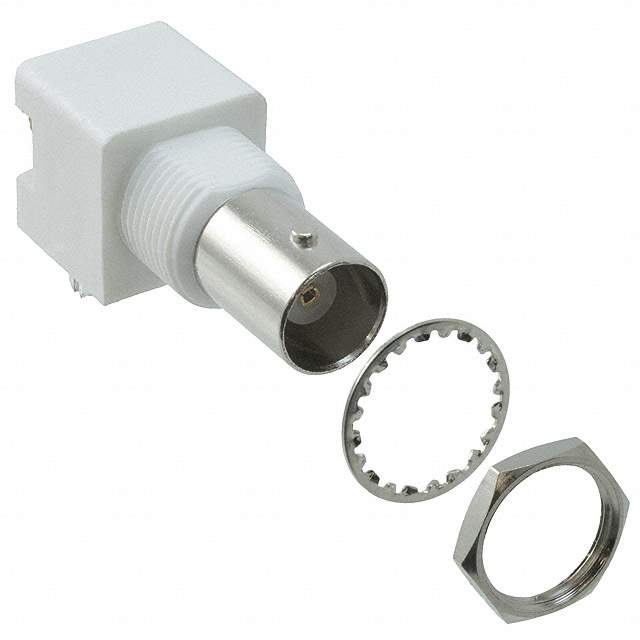

031-5431-10RFX Real Image
Same model may have multiple batches, images only for reference.

031-5431-10RFX

Part No 031-5431-10RFX
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN BNC RCPT R/A 50 OHM PCB / BNC Connector Jack, Female Socket 50Ohm Panel Mount, Through Hole, Right Angle Solder
Datasheet
031-5431-10RFX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol RF
Package Bulk
Connector Style BNC
Connector Type Jack, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Frequency - Max 1 GHz
Number of Ports 1
Features Board Lock, Isolated
Housing Color Silver, White
Center Contact Material Phosphor Bronze
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polypropylene (PP)
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 500 V
Mating Cycles 500
Insertion Loss 0.2dB
Base Product Number 031-54
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 1350012-031-5431-10RFX
Ultra Librarian 3D Model Ultra Librarian 031-5431-10RFX CAD Model

Description

The Amphenol RF 031-5431-10RFX is a BNC coaxial connector assembly with a female socket jack and a bayonet lock fastening type.

  • Voltage Rating: 500V
  • Impedance: 50 ohms
  • Maximum Frequency: 1GHz
  • Mounting: panel mountable, through hole, and right angle
  • Mounting Feature: bulkhead front side nut
  • Housing Color: silver and white
  • Body Finish: nickel
