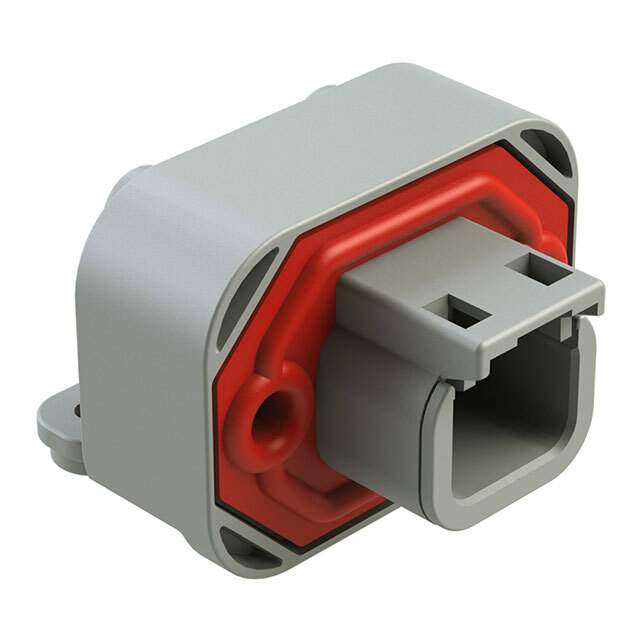

Same model may have multiple batches, images only for reference.

ATM13-2P-BM03

Name: ATM13-2P-BM03
Brand: Amphenol Sine Systems Corp
SKU: 1216692
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ATM13-2P-BM03
Manufacturer	Amphenol Sine Systems Corp
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 2POS / Connector Header Through Hole, Right Angle 2 position
Datasheet	ATM13-2P-BM03 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Amphenol Sine Systems Corp
Series	BoardLock™ ATM
Package	Tray
Connector Type	Receptacle
Contact Type	Male Pin
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.120" (3.05mm)
Insulation Height	1.063" (27.00mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic
Features	Board Guide, Mating Flange, Mounting Flange
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	IP67
Insulation Color	Gray
Current Rating (Amps)	7.5A
Voltage Rating	250V
Applications	Automotive, Industrial
Base Product Number	ATM13
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4030
Other Names	889-3289
Standard Package	150
Win Source Part Number	1216692-ATM13-2P-BM03
Ultra Librarian 3D Model	Ultra Librarian ATM13-2P-BM03 CAD Model

Alternative Products

Description

The ATM13-2P-BM03 connector from Amphenol Sine Systems Corp Amphenol Sine Systems Corp is a male pin type receptacle connector that features board guide, mating flange, mounting flange, and latch holder.

Voltage Rating: 250V
Application: Automotive and Industrial
Shrouded: 4 Walls
Mounting Type: Right-Angle
Contact Material: Copper Alloy
Contact Finish: Tin
MSL Level: 1 (Unlimited)
Current Rating: 7.5A
