Same model may have multiple batches, images only for reference.

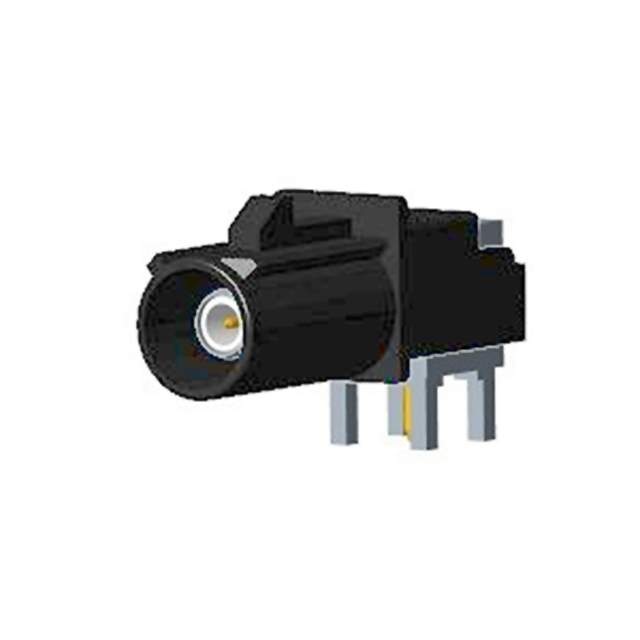

FA1-NARP-PCB-8 Real Image
Same model may have multiple batches, images only for reference.

FA1-NARP-PCB-8

Part No FA1-NARP-PCB-8
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN FAKRA PLUG R/A 50 OHM PCB / Conn SMB 0Hz to 6GHz 50Ohm Solder RA Thru-Hole PL Gold Tray Automotive
Datasheet
FA1-NARP-PCB-8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Tray
Connector Style SMB, Fakra
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting Through Hole, Right Angle
Fastening Type Locking Ramp
Frequency - Max 6GHz
Features Code A
Housing Color Black, Jet
Body Material Zinc Die Cast
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -65°C ~ 125°C
Center Contact Material Brass
Mating Cycles 100
Insertion Loss 0.3dB
Win Source Part Number 793130-FA1-NARP-PCB-8
Popularity Medium
Supply and Demand Status Limited
Family Name FA1
Introduction Date June 25, 2002
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FA1-NARP-PCB-8 CAD Model

Description

The 793130-FA1-NARP-PCB-8 is a male pin plug connector from Amphenol RF Division.

  • Fastening Type: Locking Ramp
  • Housing Color: Black, Jet
  • Maximum Frequency: 6GHz
  • Insertion Loss: 0.3dB
  • Body Material: Zinc Die-Cast
  • Body Finish: Nickel
  • Mating Cycle: 100
  • Mounting: Through-hole, Right Angle
  • Connector Style: SMB, Fakra
  • Popularity: Medium
  • Manufactured In: China
  • Estimated EOL Date: 2027
