Same model may have multiple batches, images only for reference.

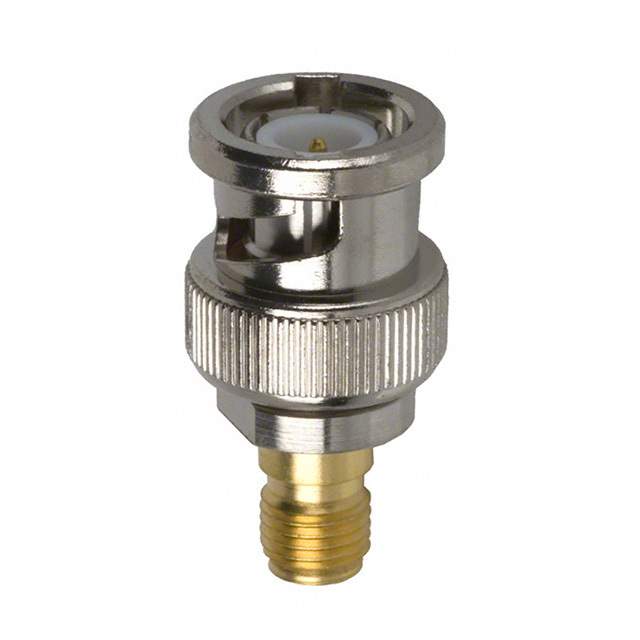

901-165 Real Image
Same model may have multiple batches, images only for reference.

901-165

Part No 901-165
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT BNC PLUG TO SMA JACK
Datasheet
901-165 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Status Active
Adapter Type Plug to Jack
Conversion Type Between Series
Adapter Series BNC to SMA
Center Gender Female to Male
Convert From (Adapter End) BNC Plug, Male Pin
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50 Ohm
Style Straight
Mounting Free Hanging (In-Line)
Fastening Type Bayonet Lock, Threaded
Maximum Input Frequency 4GHz
Center Contact Plating Gold
Body Material Beryllium Copper, Brass
Body Finish Gold; Nickel
Center Contact Material Brass
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Temperature Range - Operating -65°C to 165°C
Win Source Part Number 1092011-901-165
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 901-165 CAD Model

Description

The Amphenol RF Division 1092011-901-165 is a BNC to SMA plug-to-jack adapter manufactured by Amphenol RF Division.

  • Supply and Demand: Balanced
  • Category: Connectors, Interconnects
  • Packaging: Bulk
  • Fastening Type: Bayonet Lock and Threaded
  • Style: Straight
  • Impedance: 50-ohm
  • Operating Temperature: -65°C to 165°C
  • Maximum Input Frequency: 4GHz
