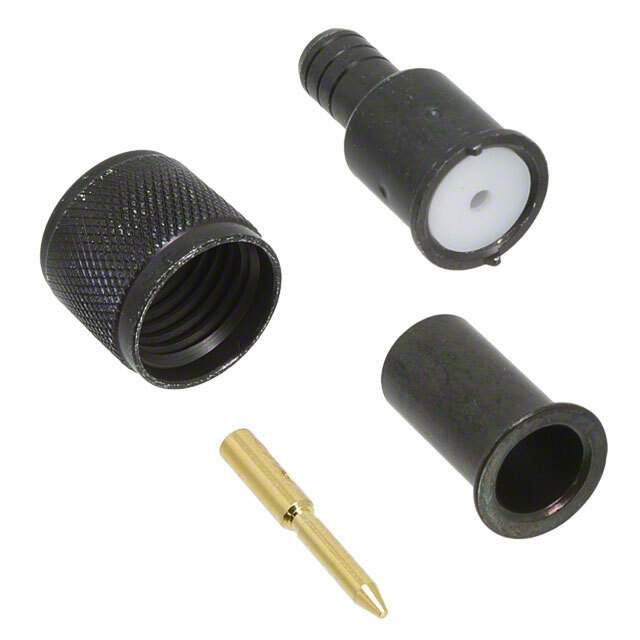

081-115BK-1000 Real Image
Same model may have multiple batches, images only for reference.

081-115BK-1000

Part No 081-115BK-1000
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF)
Description CONN MINI UHF PLUG 50 OHM CRIMP / Conn Mini-UHF 0Hz to 2.5GHz 50Ohm Crimp ST Cable Mount PL Tin-Lead
Datasheet
081-115BK-1000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol RF Division
Packaging Bulk
Connector Style UHF, Mini
Connector Type Plug, Male Pin
Contact Termination Crimp or Solder
Shield Termination Crimp
Impedance 50 Ohm
Mounting Free Hanging (In-Line)
Cable Group RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Fastening Type Threaded
Frequency - Max 2.2GHz
Housing Color Black
Body Material Brass
Body Finish Chromate, Black
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Operating Temperature Range -55°C ~ 85°C
Center Contact Material Brass
Voltage Rating 335V
Mating Cycles 500
Win Source Part Number 793137-081-115BK-1000
Popularity Medium
Supply and Demand Status Limited
Family Name Mini-UHF
Introduction Date January 26, 2001
ECCN EAR99
Country of Origin China, Germany, Mexico, Singapore, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 081-115BK-1000 CAD Model

Description

The Amphenol RF Division 793137-081-115BK-1000 is a UHF mini connector from Amphenol RF Division.

  • Voltage Rating: 335V
  • Maximum Frequency: 2.2GHz
  • Impedance: 50 Ohm
  • Cable Groups: RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
  • Connector Type: Plug, Male Pin
  • Fastening Type: Threaded
  • Contact Termination: Crimp or Solder
  • Connector Style: UHF Mini
  • Housing Color: Black
  • Mounting: Free Hanging (In-Line)
  • Cross-Reference: C1496, C1497
