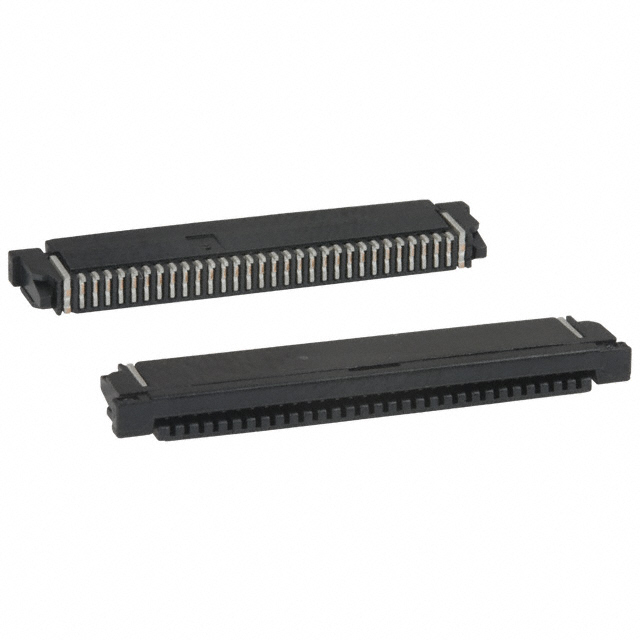

SFR30R-1STE1LF Amphenol FCI
Same model may have multiple batches, images only for reference.

SFR30R-1STE1LF

Part No SFR30R-1STE1LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 30POS 0.80MM R/A
Datasheet
SFR30R-1STE1LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Obsolete(EOL)
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 30
Pitch 0.031" (0.80mm)
Termination Solder
FFC, FCB Thickness 0.30mm, 0.33mm
Height Above Board 0.098" (2.50mm)
Locking Feature Slide Lock
Cable End Type Straight or Tapered
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Zero Insertion Force (ZIF)
Material Flammability Rating UL94 V-0
Housing Color Black
Actuator Color Black
Win Source Part Number 1095432-SFR30R-1STE1LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SFR30R-1STE1LF CAD Model

Description

The Amphenol FCI 1095432-SFR30R-1STE1LF is a zero insertion force (ZIF) connector designed for flat flex cables (FFC) and flexible printed circuits (FPC) with a thickness of 0.30mm or 0.33mm.

  • Positions: 30
  • Pitch: 0.031" (0.80mm)
  • Locking: Slide lock
  • Feature: Solder Retention
  • Contact Finish: Tin
  • Housing Material: Polyphenylene Sulfide (PPS), Glass Filled, UL94 V-0
  • Actuator Material: PPS, Glass Filled
  • Mounting Type: Surface Mountable
  • Height Above Board: 0.098" (2.50mm)
