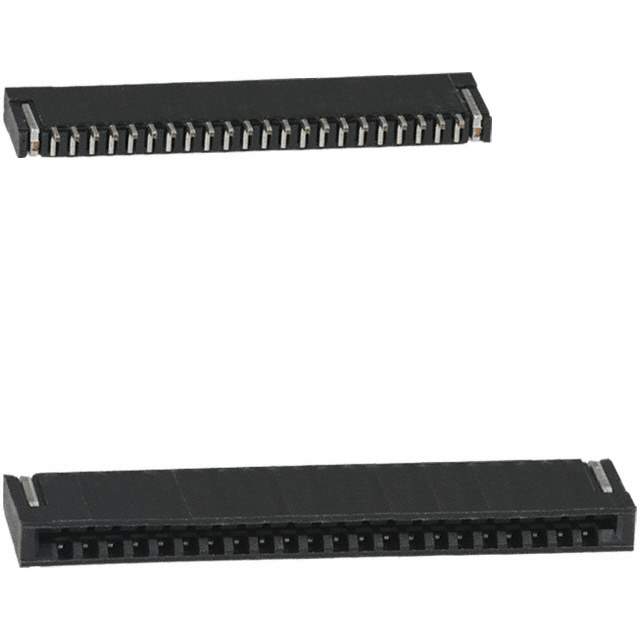

HFW22R-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

HFW22R-2STE1LF

Part No HFW22R-2STE1LF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 22POS 1MM R/A
Datasheet
HFW22R-2STE1LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 22
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.075" (1.90mm)
Cable End Type Straight or Tapered
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T, Glass Filled
Voltage Rating 100V
Temperature Range - Operating -55°C to 105°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Housing Color Black
Mating Cycles 30
Win Source Part Number 1043294-HFW22R-2STE1LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HFW22R-2STE1LF CAD Model

Description

The Amphenol FCI 1043294-HFW22R-2STE1LF is a connector used in various electronic devices.

  • Supply and Demand Status: Balanced
  • Number of Positions: 22
  • Pitch: 0.039" (1.00mm)
  • Termination: Solder
  • Contact Finish: Tin
  • Voltage Rating: 100V
  • Current Rating: 1A
  • Height Above the Board: 0.075" (1.90mm)
  • Flat Flex Type: FFC, FPC
  • Housing Material: Polyamide (PA6T), Nylon 6T, Glass Filled
  • Actuator Material: Not specified
  • Mounting: Surface Mounted
  • Orientation: Right Angled
  • Mating Cycles: 30
  • Temperature Range: -55°C to 105°C
