Same model may have multiple batches, images only for reference.

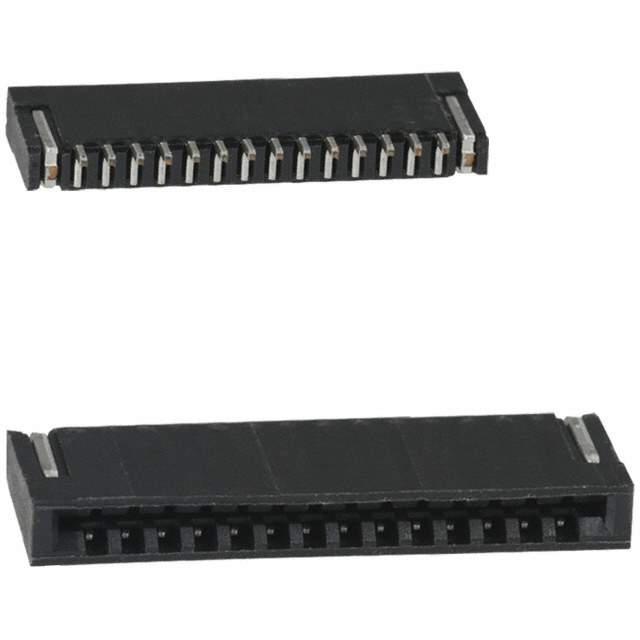

HFW14R-2STE1 Real Image
Same model may have multiple batches, images only for reference.

HFW14R-2STE1

Part No HFW14R-2STE1
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 14POS 1MM R/A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging Reel
Part Status Obsolete (End Of Life)
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 14
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.075" (1.90mm)
Cable End Type Straight or Tapered
Contact Material Phosphor Bronze
Contact Finish Tin Alloy
Housing Material Polyamide (PA6T), Nylon 6T, Glass Filled
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Black
Mating Cycles 30
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809291-HFW14R-2STE1
Ultra Librarian 3D Model Ultra Librarian HFW14R-2STE1 CAD Model

Description

The Amphenol ICC (FCI) 809291-HFW14R-2STE1 is a surface mount, right angle FFC/FPC connector that is designed for use in a wide range of applications, including mobile devices and other consumer electronics.

  • Positions: 14
  • Pitch: 0.039 inches
  • Contact Material: Phosphor bronze
  • Contact Plating: Tin alloy
  • Housing Material: Polyamide and nylon
  • Housing Color: Black
  • Height Above Board: 0.075 inches
  • Temperature Range: -55°C to 105°C
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Popularity: Medium
