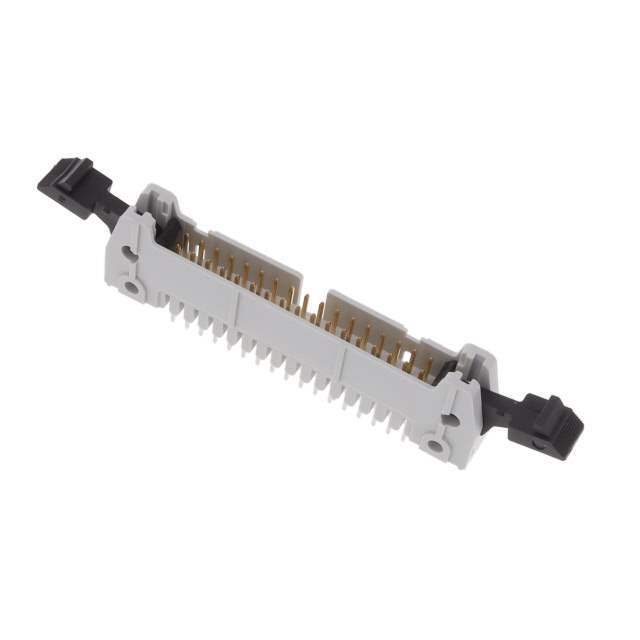

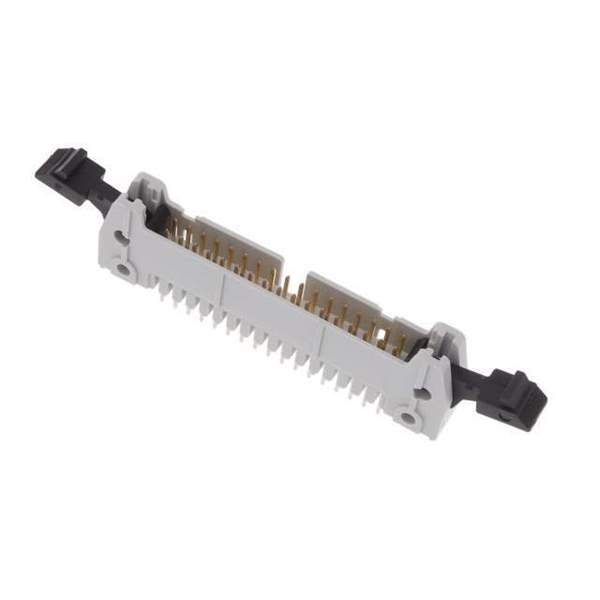

86130342114345E1LFAmphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

86130342114345E1LF

Part No 86130342114345E1LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER VERT 34POS 2.54MM
Datasheet
86130342114345E1LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Amphenol ICC (FCI)
Packaging  Tray
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 34
Number of Rows 2
Number of Positions Loaded All
Shrouding Shrouded - 4 Wall
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.171" (4.35mm)
Overall Contact Length 0.713" (18.10mm)
Ultra Librarian 3D Model Ultra Librarian 86130342114345E1LF CAD Model

Description

Connector Header Through Hole 34 position 0.100" (2.54mm)
