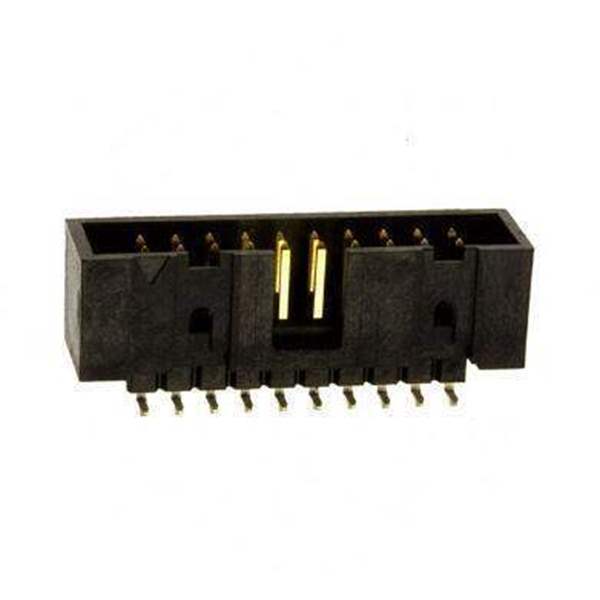

72454-020LFAmphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

72454-020LF

Part No 72454-020LF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Tray
Connector Type Header
Contact Type Male Pin
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.365" (9.27mm)
Contact Finish - Mating Gold, GXT™
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Features Keying Slot, Pick and Place
Win Source Part Number WS1210431-72454-020LF
Ultra Librarian 3D Model Ultra Librarian 72454-020LF CAD Model

Description

Connector Header Surface Mount 20 position 0.100" (2.54mm)
