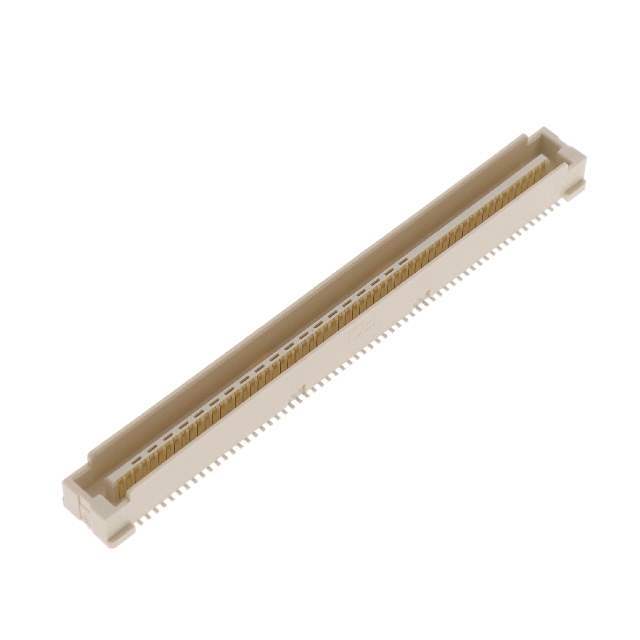

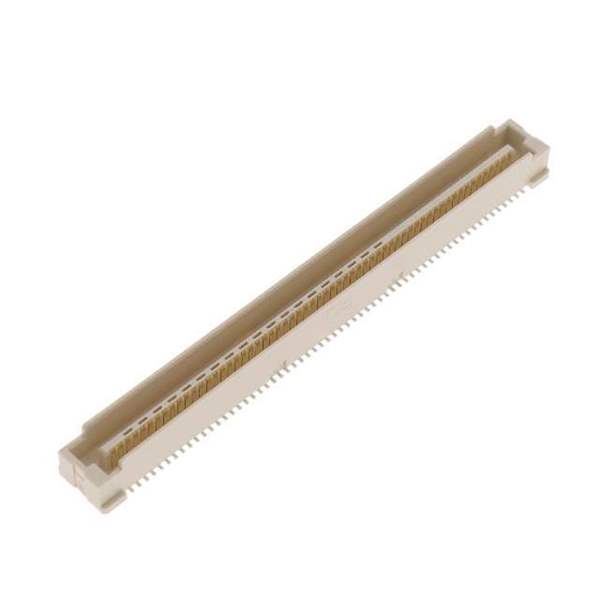

10139085-121402LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10139085-121402LF

Part No 10139085-121402LF
Manufacturer Amphenol FCI
Catalog Rectangular - Board to Board Connectors
Description BERGSTAK+ 0.8MM, PLUG, P1, 120PO
Datasheet
10139085-121402LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324507-10139085-121402LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Arrays, Edge Type, Mezzanine (Board to Board)
Part Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 120
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Pick and Place
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian 10139085-121402LF CAD Model

Description

BergStak+™ 0.80mm is designed to be the next generation PCIe® 4.0 compliant mezzanine connector system. It is fully compatible with the existing BergStak® 0.80mm product recommended by the Open Compute Project (OCP).

ā— Backward mateable and footprint compatible with existing BergStak® 0.80mm

ā— Available in 80 and 120 positions. Other position options on request

ā— Available in 5, 8, 12 and 16mm stack heights
