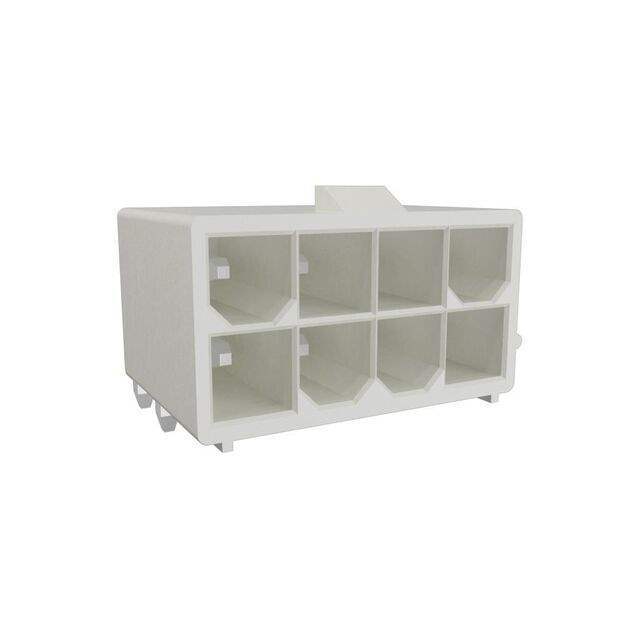

10131318-08512GRLF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10131318-08512GRLF

Part No 10131318-08512GRLF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER R/A
Datasheet
10131318-08512GRLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324475-10131318-08512GRLF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Tape & Reel (TR)
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Ultra Librarian 3D Model Ultra Librarian 10131318-08512GRLF CAD Model

Description

Minitek® Pwr 4.2 High Current Connector (HCC) is designed for power applications with current rating up to 13A per contact and wire gauge range from 30AWG-16AWG for wire-to-wire and wire-to-board applications. It is available in 2 to 24 circuits for dual row and 3 to 5 circuits for single row.

• Rated current up to 13A per contact

• Fully isolated terminals

• Positive locking on housing with low thumb latch operation

• Patented right angle receptacle housing
