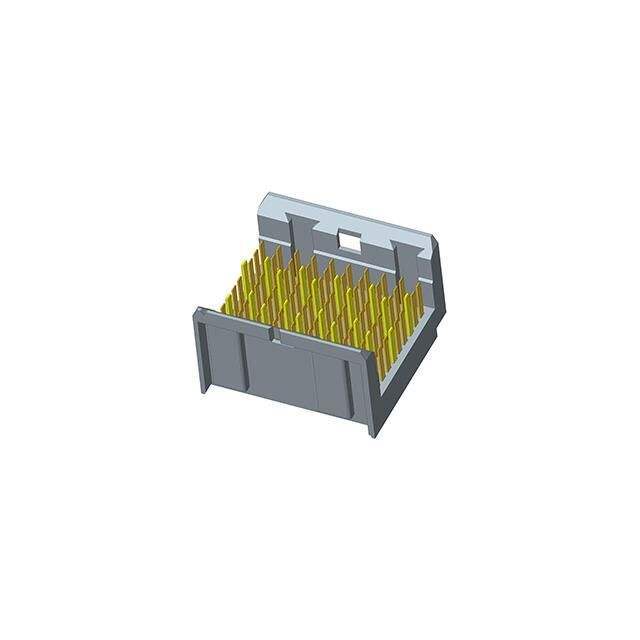

10130519-101LF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10130519-101LF

Part No 10130519-101LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description VSE 3X10 VH SM 2S/G WC
Datasheet
10130519-101LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324471-10130519-101LF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Backplane Connectors > Specialized
Packaging Tube
Part Status Active
Number of Positions 90 Position
Number of Rows 9 Row
Pitch 2 mm
Termination Style Press Fit
Product Type High Speed / Modular Connectors
Ultra Librarian 3D Model Ultra Librarian 10130519-101LF CAD Model

Description

FEATURES

• Provides a migration path for up to 25Gb/s per differential pair

• Shieldless design with closely coupled pairs

• Backward mateable to existing AirMax VS® and AirMax VS2® designs

• 3, 4 and 5 pair backplane and coplanar versions are available

• Hard metric design practice
