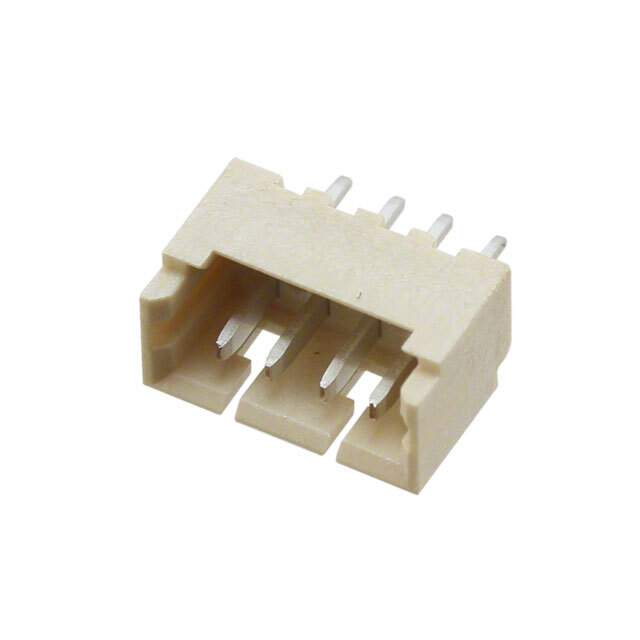

Same model may have multiple batches, images only for reference.

10114829-10104LF

Name: 10114829-10104LF
Brand: Amphenol FCI
SKU: 807814
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	10114829-10104LF
Manufacturer	Amphenol FCI
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 1.25MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Amphenol ICC (FCI)
Packaging	Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049"
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Post	0.091" (2.30mm)
Insulation Height	0.165" (4.20mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	1A
Voltage Rating	125V
Manufacturer Pack Quantity	1,400
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	807814-10114829-10104LF
Ultra Librarian 3D Model	Ultra Librarian 10114829-10104LF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) 807814-10114829-10104LF is a header type connector with a total of 4 positions.

Contact Type: Male Pin
Mounting Style: Through-Hole
Pitch: 0.049 inches
Contact Finish: Tin
Contact Material: Phosphor Bronze
Voltage Rating: 125V
Insulation Material: Liquid Crystal Polymer (LCP)
Material Flammability Rating: UL94 V-0
Style: Board to Cable/Wire
Shrouding: 4 Walls
Contact Length Post: 0.091 inches (2.30mm)
Insulation Height: 0.165 inches (4.20mm)
Temperature Range: -40 degrees Celsius to 105 degrees Celsius
Supply and Demand Status: Balanced
EOL Date: 2025 (Estimated)
Manufacturer Pack Quantity: 1,400
ECCN: EAR99
