Same model may have multiple batches, images only for reference.

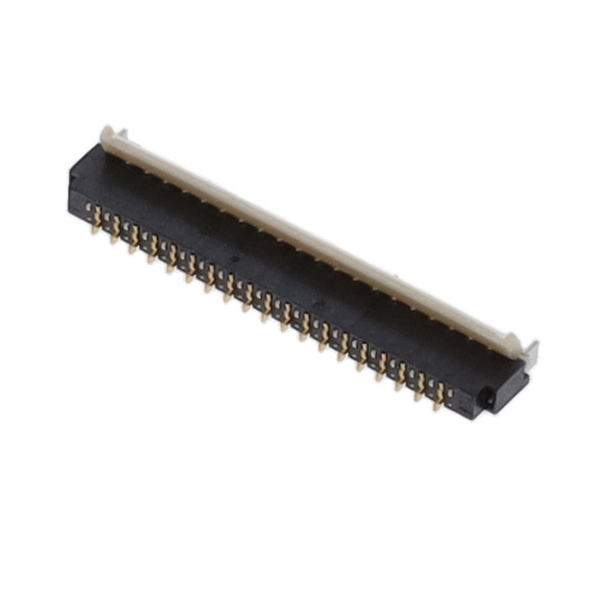

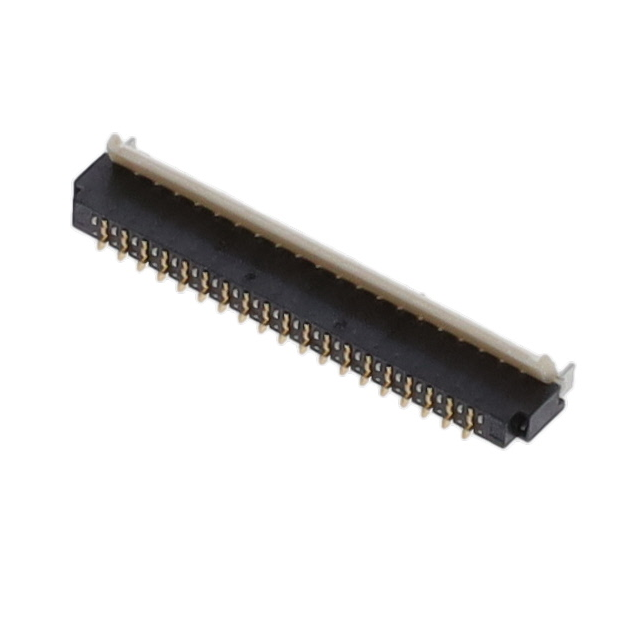

10064555-392120HLF Real Image
Same model may have multiple batches, images only for reference.

10064555-392120HLF

Part No 10064555-392120HLF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 39POS 0.30MM R/A
Datasheet
10064555-392120HLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 39
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Notched
Contact Finish Gold
Housing Material Thermoplastic, Halogen Free
Actuator Material Thermoplastic, Halogen Free
Features Solder Retention
Voltage Rating 30V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Contact Finish Thickness Flash
Housing Color Black
Actuator Color Beige
Mating Cycles 10
Win Source Part Number 1000752-10064555-392120HLF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 10064555-392120HLF CAD Model

Description

The Amphenol FCI 1000752-10064555-392120HLF is a 39-position FPC connector that features solder retention and flip lock.

  • Positions: 39
  • Features: Solder Retention, Flip Lock
  • Material: Thermoplastic, Halogen-Free
  • Flammability Rating: UL94 V-0
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Height Above Board: 0.037 inches (0.95mm)
  • Mounting Type: Surface Mount, Right Angle
  • Connector Type: Contacts, Top
  • Cable End Type: Notched
  • FFC, FCB Thickness: 0.20mm
  • Temperature Range: -55°C to 85°C
