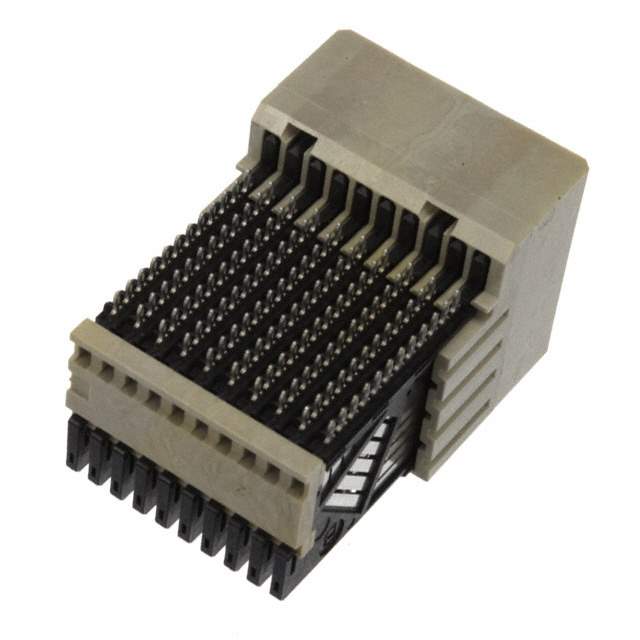

10028436-101LF Real Image
Same model may have multiple batches, images only for reference.

10028436-101LF

Part No 10028436-101LF
Manufacturer Amphenol FCI
Catalog Backplane Connectors
Description CONN HEADER 120POS 2MM R/A PCB
Datasheet
10028436-101LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Series Airmax VS
Packaging Tube
Connector Usage Daughtercard
Connector Type Header, Male Pins
Connector Style High Speed
Number of Positions 120
Number of Positions Loaded All
Pitch 0.055" (1.40mm)
Number of Rows 12
Number of Columns 10
Mounting Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Color Natural
Material Flammability Rating UL94 V-0
Operating Temperature Range -55°C ~ 85°C
Win Source Part Number 760077-10028436-101LF
Popularity Medium
Supply and Demand Status Balance
Family Name 10028436
Introduction Date April 04, 2007
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 10028436-101LF CAD Model

Description

The Amphenol FCI Airmax VS series is a high-speed connector that is designed for use in daughtercards.

  • Color: Natural
  • Pitch: 0.055 inches (1.40mm)
  • Connector Type: Header, male pins
  • Positions Loaded: 120
  • Termination: Press-fit
  • Contact Finish: Gold, 30μin (0.76μm) thickness
  • Connector Style: High speed
  • Material Flammability: UL94 V-0
  • Mounting: Board edge, through hole, right angle
  • Usage: Daughtercard
  • Columns: 10
  • Estimated EOL Date: 2026
  • Halogen-Free: Yes
